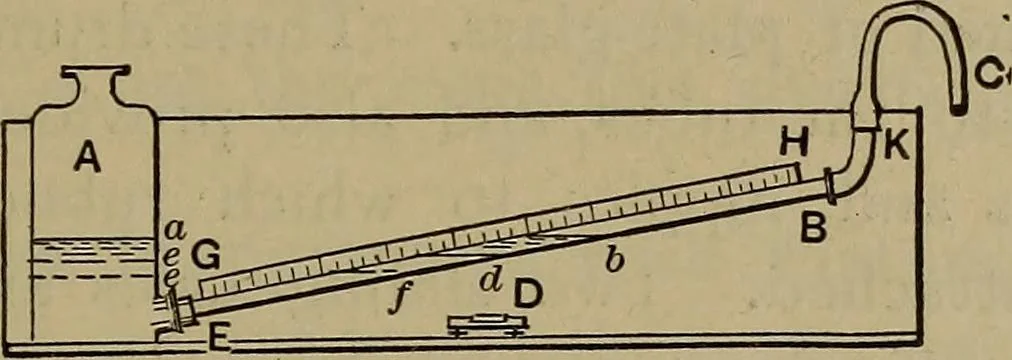

ce near the bottominto which a tube, EB, is inserted with any convenient incli-nation, as one in five. The upper end of the tube is bent up-ward, as at BK^ and connected with a rubber tube, KC, leadingto the chimney. The tube is fastened to a convenient support, §-275-] rMEA S UREM EN T OF PRE SS… … Fig. 123.—Draught-gauge. five times the difference of level in the bottle and tube. Thescale should be graduated to show differences of level in thebottle, arid thus give the pressure directly in inches of water. Higginss Draught-gauge.—Another form of this class ofdraught-gauges is shown in Fig.…
