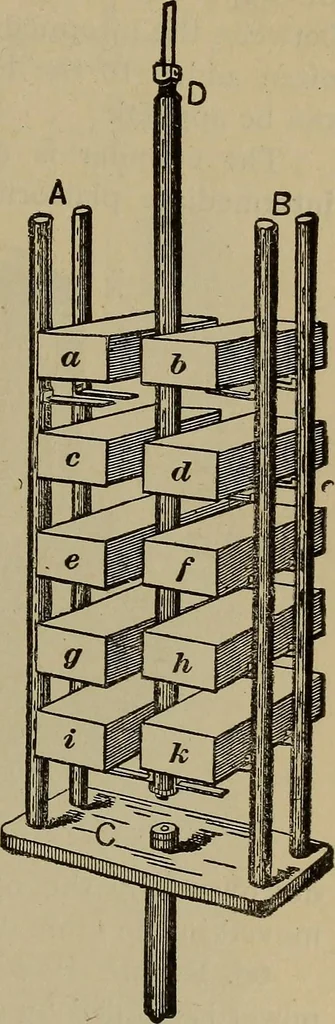

rd hydraulic machineas constructed by this firm is shownin Fig. 33. In this machine the cylin-der of the hydraulic press, which issituated directly beneath the specimen,is movable, and the piston is fixed. This motion is transmitted through the specimen, and isresisted by the weighing levers at the… … Fig. 32.—Device for AddingOR Removing Weights. -- 90 EXPERIMENTAL ENGINEERING. [§^. holding the specimen : the lower one forms a plane table. Theintermediate platform, or draw-head, can be adjusted in dif-ferent positions by turning the nuts on the screws shown inthe cut. For tension-strains the…
