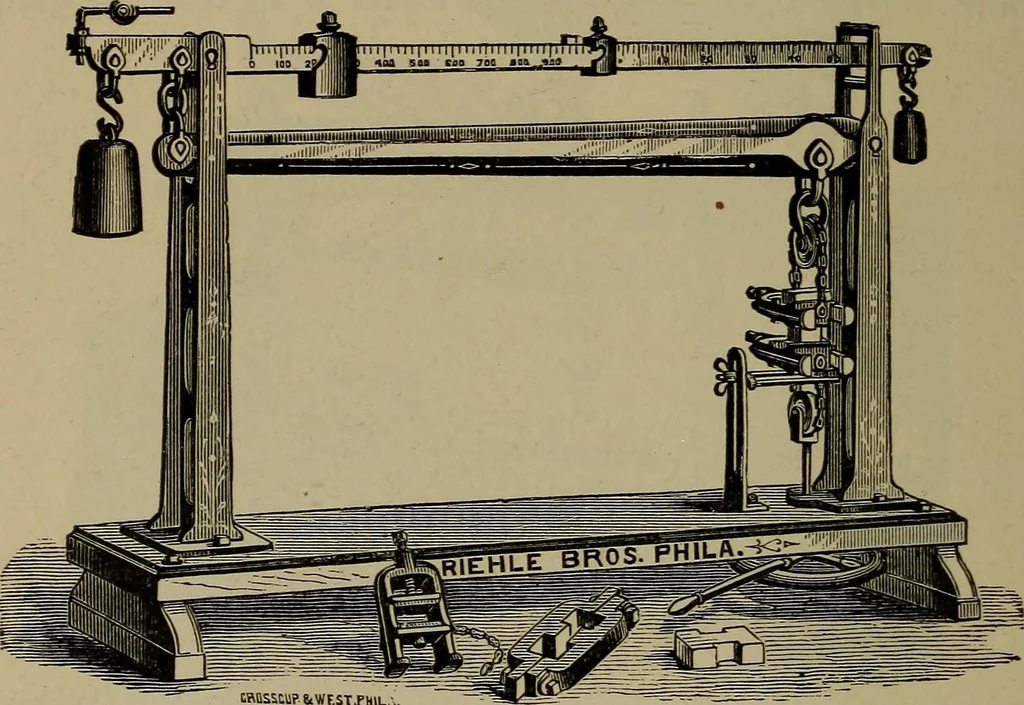

in the cement-testing laboratory at I04 EXPERIMENTAL ENGINEERING. l%77 Cornell University. In this machine water is supplied flowingfrom a constant head through a small glass orifice. The fallof the beam consequent on the breaking of the specimen in-stantly stops the flow of water; the weight of… … tRaSSW?giWF.STilllL.\. Fig. 45.—Riehl6 Bros. Cement-testing Machine. briquette very slowly. The poise on the scale-beam is movedby turning a crank so that the beam can readily be kept float-ing. The peculiar method of mounting the shackles or hold-ers to insure an axial pull is well shown in the…
