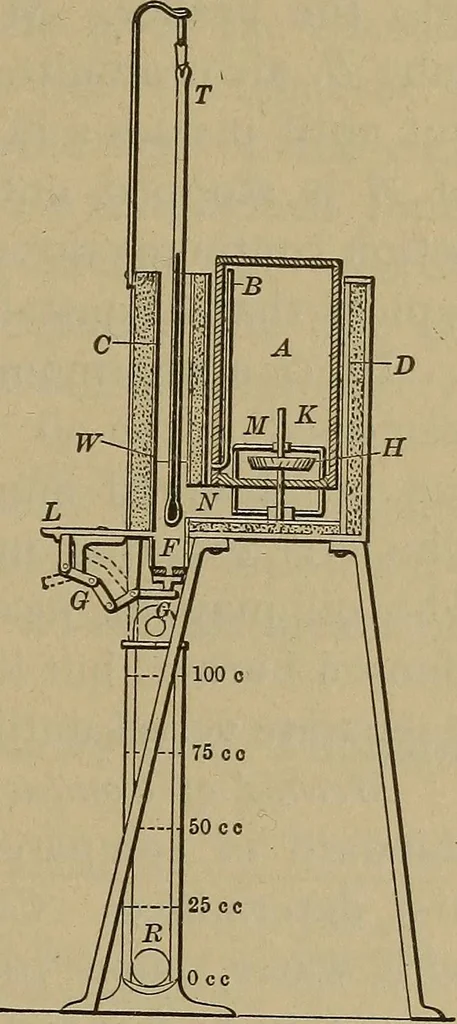

The mechanism L, G, G is a device for opening andclosing the orifice F readily, and is held in a closed positionby spring catch L. The instrument is supported by three legs about eightinches in length. Operation.— Withdraw cup A, fill it in an inverted posi-tion with the oil, hold valve H on its… … Fig. 105.—Viscosimeter 208 EXPERIMENTAL ENGINEERING. [§ 141. lower opening of tube B. A beaker graduated in c.c.s, ofcapacity of about no c.c, is placed under F; L is releasedand G allowed to drop, permitting oil to flow through F freelyinto the beaker. When oil in C falls below the bottom oftube…
