Experimental engineering and manual for testing. For engineers and for students in engineering laboratories (1906)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & Sons; [etc., etc.] · leaf 513

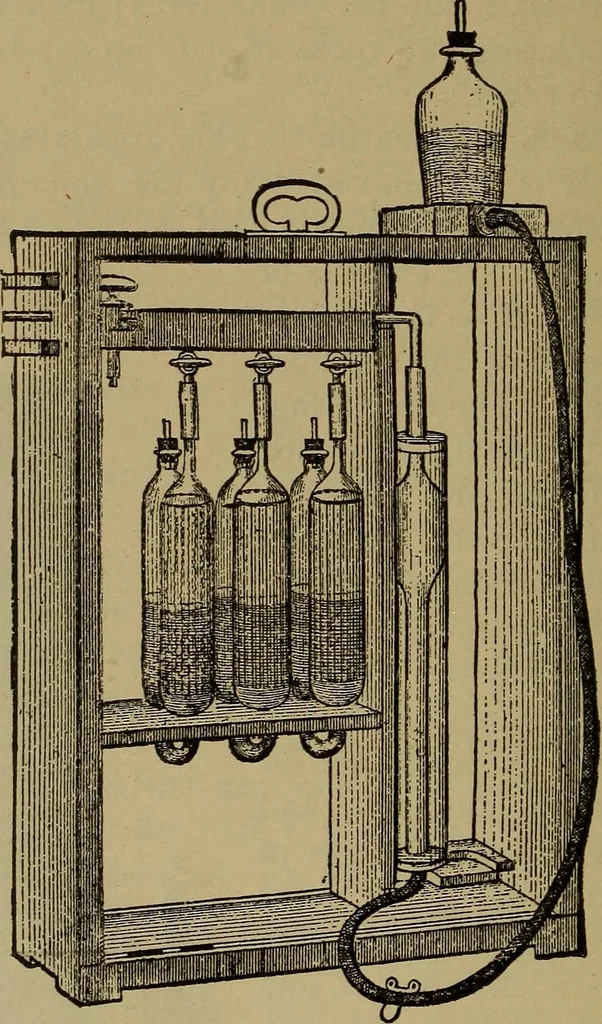

Fig. 217.—Apparatus for Gas Analysis. 482 EXPERIMENTAL ENGINEERING. [§ 365. apparatus, shown in Fig. 218, belongs to the class in whicheach reagent is introduced in a concentrated form into a specialtreating-tube. The apparatus consists of a measuring-tubesurrounded by a water-jacket, into which… … Fig. 218.—Orsats Gas-analysis Apparatus. reagent is introduced in a concentrated form into a pair ofburettes connected at the bottom by a U-shaped tube. In making an analysis the gas is first drawn into themeasuring-tube and 100 c.c. retained; the cock in the tubeleading to one of the…
