Experimental engineering and manual for testing. For engineers and for students in engineering laboratories (1906)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & Sons; [etc., etc.] · leaf 594

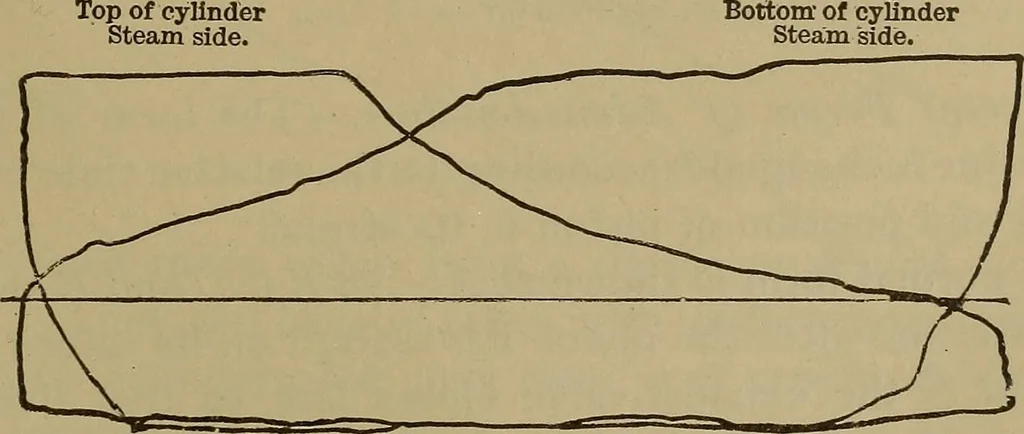

65 lbs.Boiler Press. r\ 54per cent of ideal.. 15 Horse Power Fio 265.—Loss by Cylinder-condensation. possible in such cases to determine the defect from the dia-gram, and to suggest the proper remedy. A few examples aresubmitted. Such examples could be multiplied indefinitely,and skill and… … Vacuum side-Fig. 266.—Unsymmetrical Valve-setting. eriy interpret them. Thus Fig. 266 is an illustration of a dia-gram taken when the valves were set unsymmetrically. Curvesor waves in the expansion or compression lines indicate inertia- 564 EXPERIMEN TA L ENGINEERING. [§409. effects in the…
Building materials · Machinery
