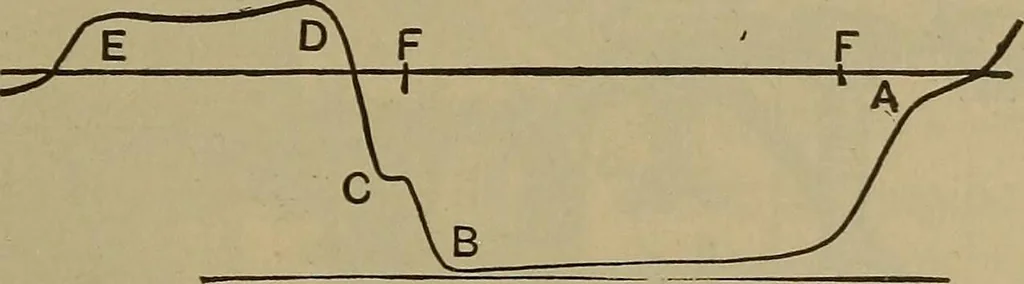

Fig. 270.—Combined Diagram from Triple-expansion Engine. In such a case, shown by Fig. 271 the ordinates will be asbefore proportional to the pressures per square inch acting onthe piston, but the abscissae will correspond to distances moved … Fig. 271,—Shaft-diagram. through by the crank-pin. In Fig. 271, A to B is the exhaust,from B to C compression, D to E steam line, E to A expan-sion. Diagrams may also be taken with the indicator mountedon the valve-chest; in this case the indicator would show vari-ation in pressure in the…
