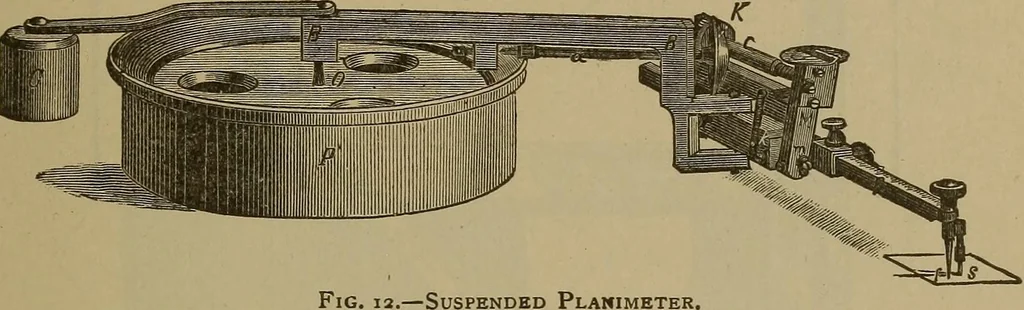

er, with a hundred sub- 32-] APPARA TUS. 41 divisions of the circumference, corresponds almost exactly toa scale of forty subdivisions to the inch, and is the dimensionusually adopted on foreign-made instruments. 30. The Suspended Planimeter.—In the Amsler sus-pended planimeter as shown in Fig. 12,… … Suspended Planimeter. segment R. The rotation of the segment is due to angularmotion around the pole O, that of the cylinder c to its posi-tion with reference to the axis of the segment. This positiondepends on the angle that the tracing arm, ksf makes with theradial arm, BB. The area in each case…
