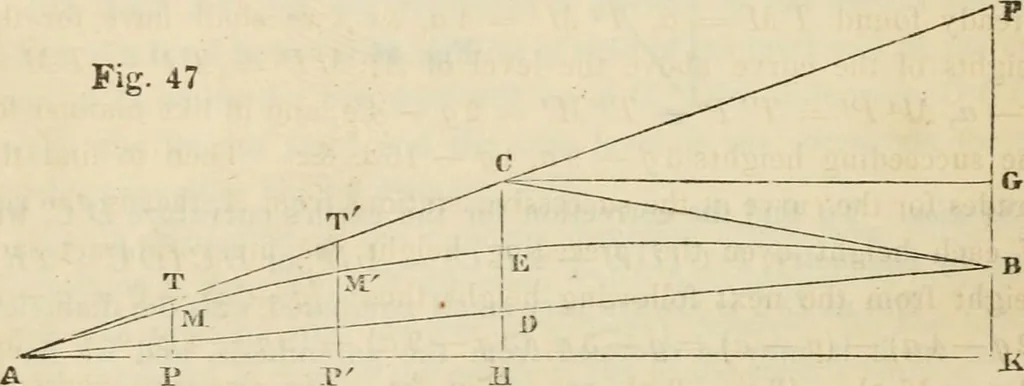

d to the height at every station on A C, andij denotes what is added to the height at every station on CB],huisince CB is a descending grade, the C[uantity added is a minus quan-tity, and (/ will therefore be negative. The parabola furnishes a verysimple method of putting in a vertical curve. 107.… … Solution. Let A E B he the required parabola. Through B and Cdraw the vertical lines FK and C H, and produce A C to meet FKin F. Through .1 draw the horizontal line A K, and join A B, cut-ting C H in D. Then, since the distance from C to A and B is meas-ured horizontally, we have A H =^ HK. and…
