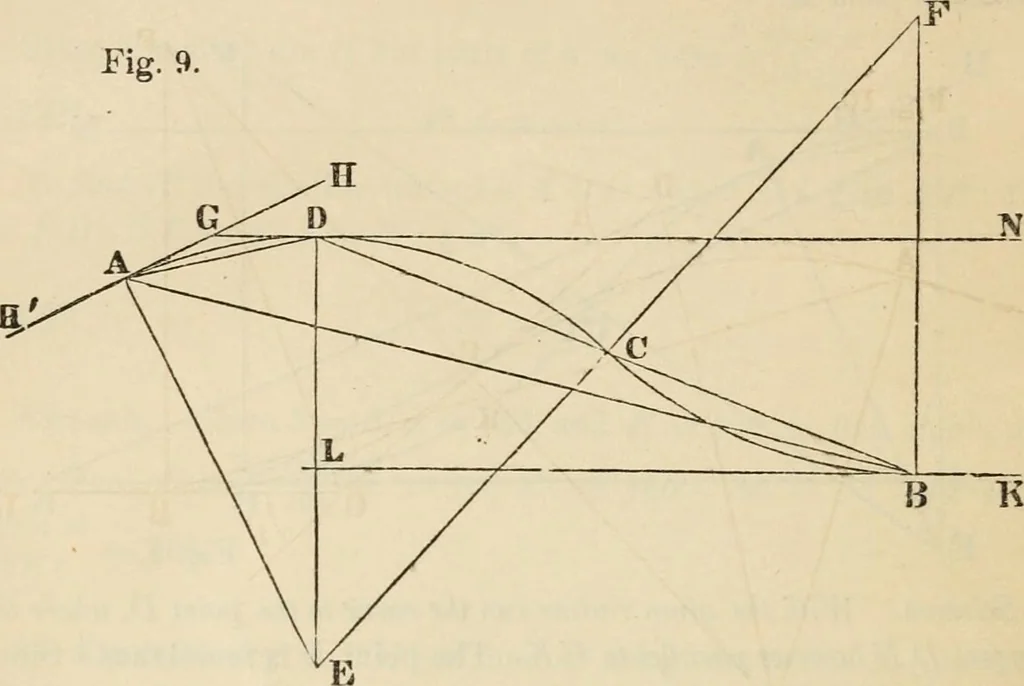

ngles HAB = A and ABL = B,tnd the first radius A E = R, to find the second radius B F = R of aTeversfd curve to unite the tangents H A and B K. First Solution. With the given radius run the carve to the point Z),ohere the tangent D N becomes parallel to B K. The point D is found 20 CIRCULAR CURVES.… … Setting the instrument at Z), run the curve to the reversing point C in theline from D to B {^ 32), and measure D C and C B. Then the similartriangles DEC and BFC give DC:DE =^ CB : B F, or D C: Ji^ CB:R; CB .R^. DC X R- Second Solution. By this method the second radius may bt founuby calculation…
