Fireproof construction for houses and other buildings at moderate cost. (1909)
National Fire Proofing Co. (Chicago, Ill.) · The Company · leaf 70

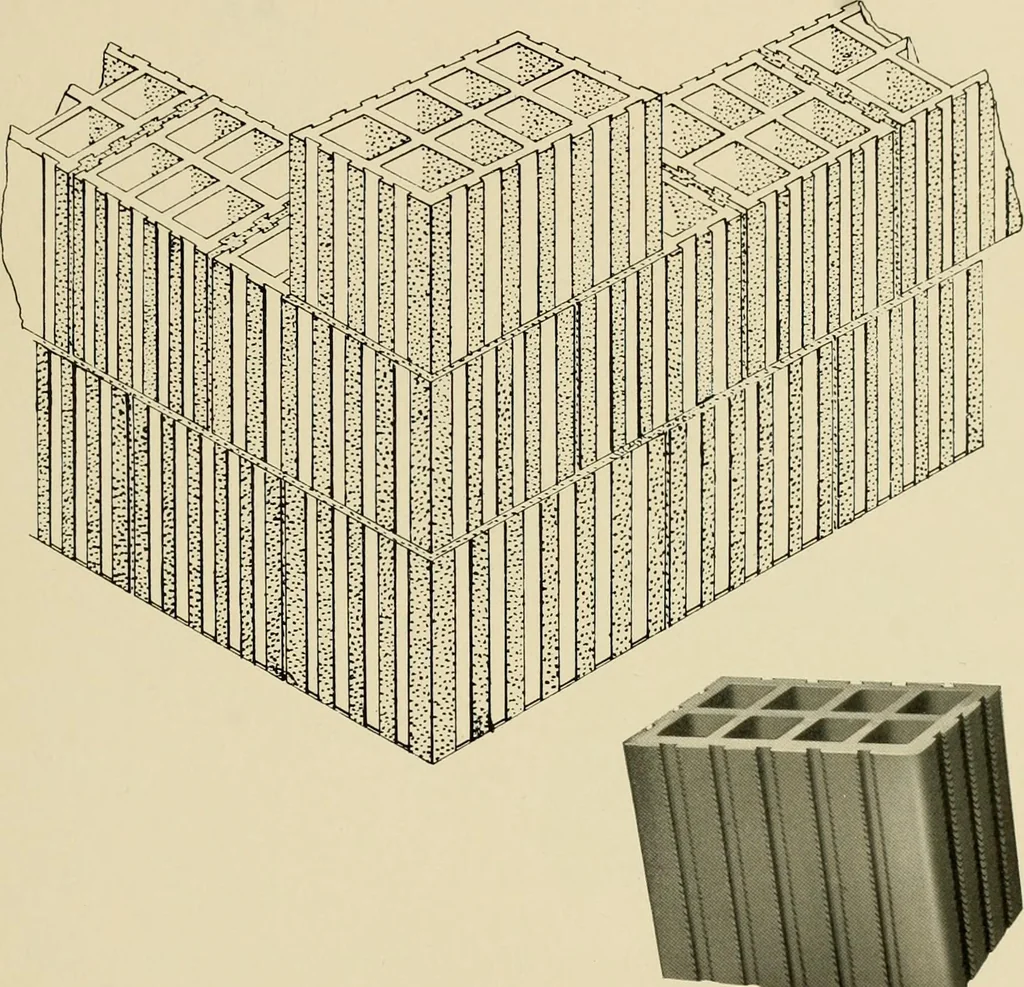

7^o//oiv We ■4Reinforced Co/?crcte Beams^6 on Centers Srec/ ^oj Fe/a/brcement \3>/^V/^ Wall 7/le Figure 4. Details of Wall construction of Terra Cotta Hollow Tile with fireproof floor ofhollow tile and reinforced concrete floor beams. … Figure 5. Detail showing use of Special Corner Block as illustrated. This block beingfour inches longer than the regular wail block permits of the overlapping of joints at corner ineach alternate course thus insuring a thorough bond at the wall corner. Page Sixty-seven
