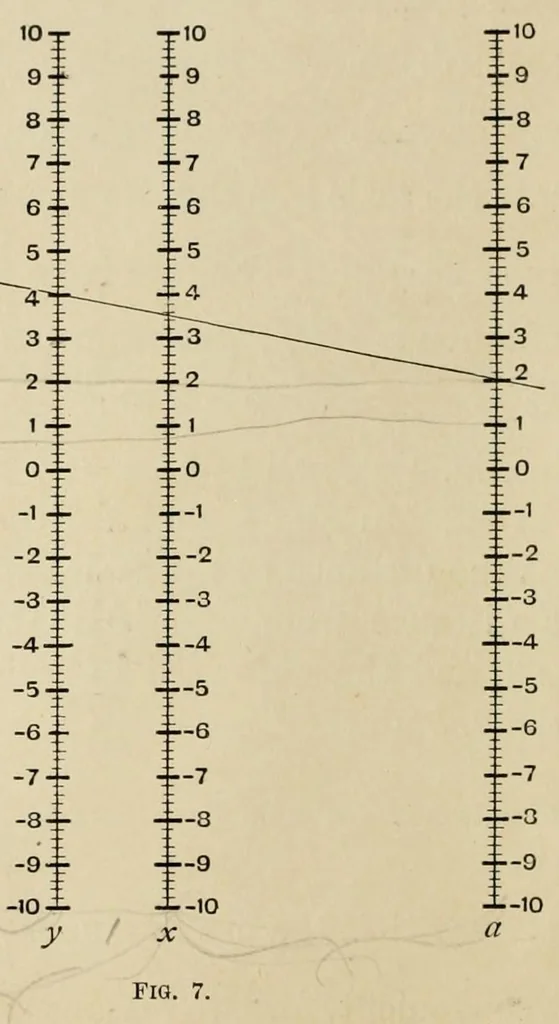

ADDITION AND 12 a slight modification, which we shall illustrate" by reference to one or two simple cases. InJFig. 7 the scales a, b, x, y are all graduated in exactly the same way^ but the scale x is midway … between scales a, b, and the scale y is twice as far from a as it is from b. Let a line cut all the four scales. It is easy to show that twice distance x= distance a + distance b, 3 times distance y = distance a + twice distance b.
