First principles of mechanical and engineering drawing (1897)
Holt-Butterfill, H · London : Chapman & Hall · leaf 117

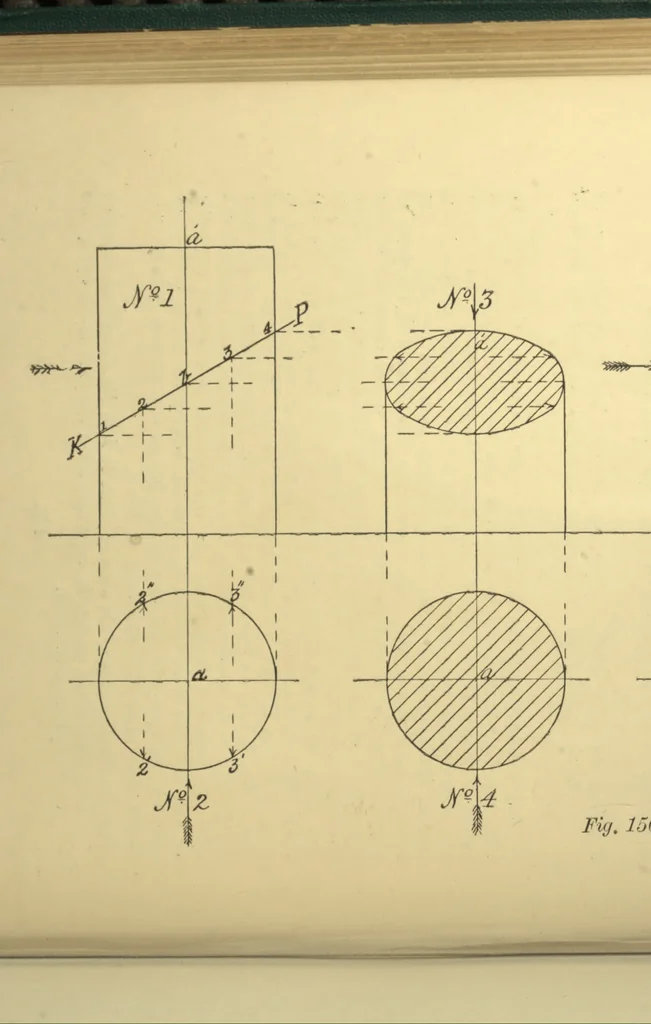

e drawn through the points thus obtained willgive the required projection. As the cylinder is standing verticallyon the HP, the plan of No. 3, although having its upper surface in-clined to its base, will still be a circle; but as that surface is in section,it has to be cross-lined as shown in No.… … MECHANICAL AND ENGINEERING DRAWING 105 The portion of the cylinder left in this case is called an ungula, andthe required elevation and plan of the section are obtained in a similarway to No. 3 and No. 4. First, to find the elevation: choose, asbefore, a convenient number of points in the line KP;…
