First principles of mechanical and engineering drawing (1897)
Holt-Butterfill, H · London : Chapman & Hall · leaf 145

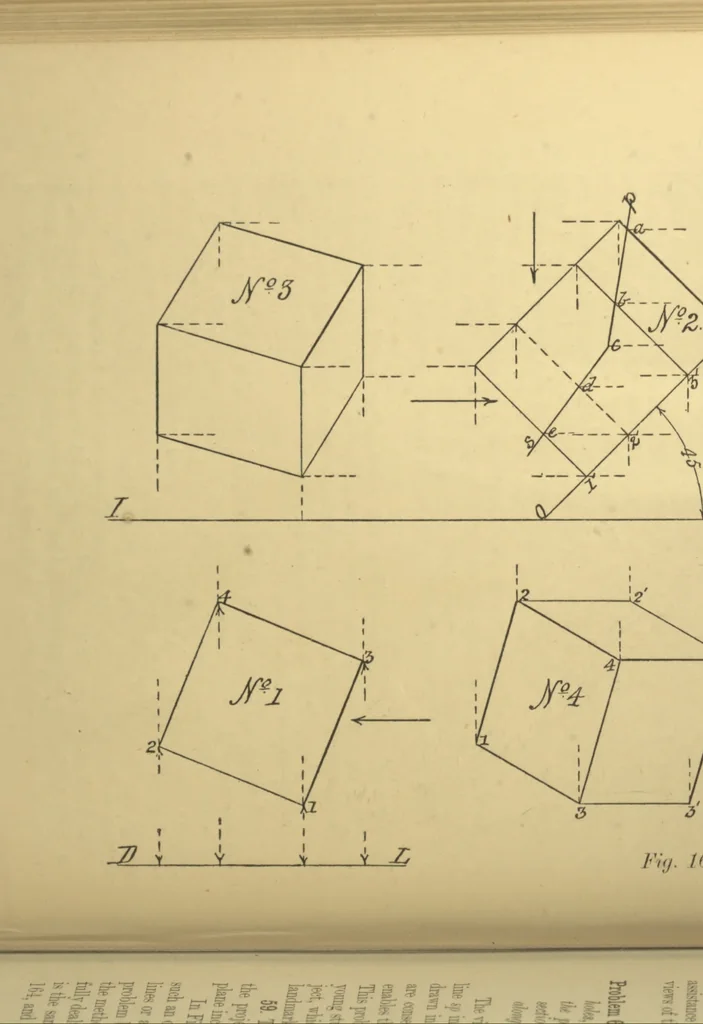

art of it is nothing more than a repetition of the processadopted in the last case, applied to the altered position of the originalobject, no further assistance is given than that indicated by the con-struction lines shown, as the views almost explain themselves. No. 1is the plan of the original… … MECHANICAL AND ENGINEERING DRAWING 133 reference figures are purposely omitted that the student may feel lessdependent upon such helps as he proceeds. In views Nos. 5 and 6 (Fig. 164), the only point likely to causedifficulty in a first attempt at getting the sectional elevation and planof the…
