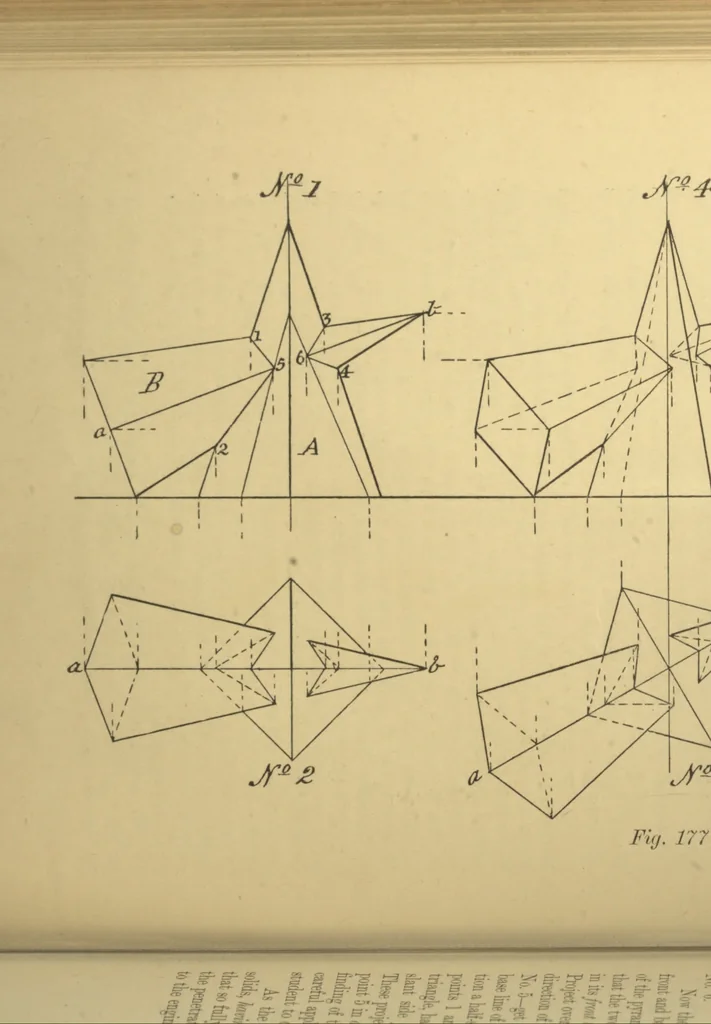

with the VP or IL; and from it and No. 1 find byprojection the elevation of the pyramids and lines of penetration intheir new position. This view, if obtained in accordance with the pro-cedure already explained in a previous problem, will give No. 4 (Fig.177) as the result. 70. As a concluding… … MECHANICAL AND ENGINEERING DRAWING 163 square pyramid is penetrated by a similar solid, the relative position ofthe two being such that an axial plane passed through both gives asimilar section in each, but divides them into dissimilar solids. Theproblem is— Problem 74 (Fig. 177).—A square pyramid…
