First principles of mechanical and engineering drawing (1897)
Holt-Butterfill, H · London : Chapman & Hall · leaf 181

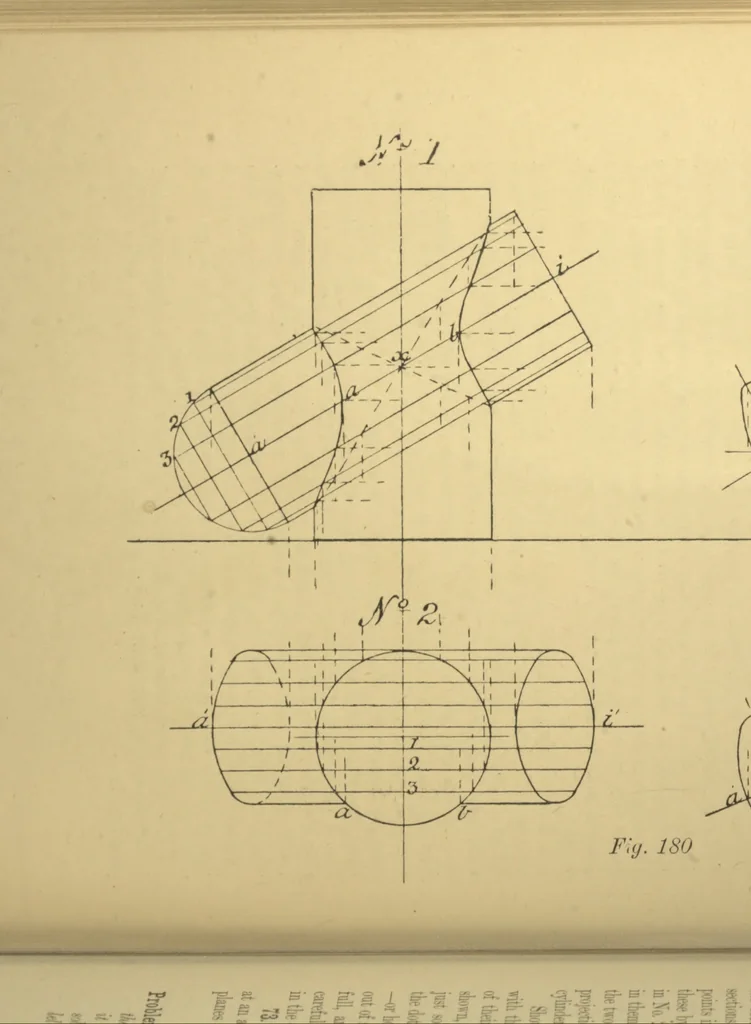

finding of the elevation and lines of penetration of the two cylin-ders, in their new position, offers to the student some practice in theprojection of ellipses, which will very frequently occur in this part ofthe subject, no further assistance is given in this problem than thatafforded by the few… … MECHANICAL AND ENGINEERING DRAWING 1G9 Problem 76 (Fig. 179).—Given the plan of two cylinders of unequaldiameter intersecting each other, with their axes at right angles andin one plane parallel to the VP ; to find their elevation and lines ofpenetration. The plan of the two cylinders in the…
