Formulas in gearing, with practical suggestions (1892)
Providence, Brown · leaf 61

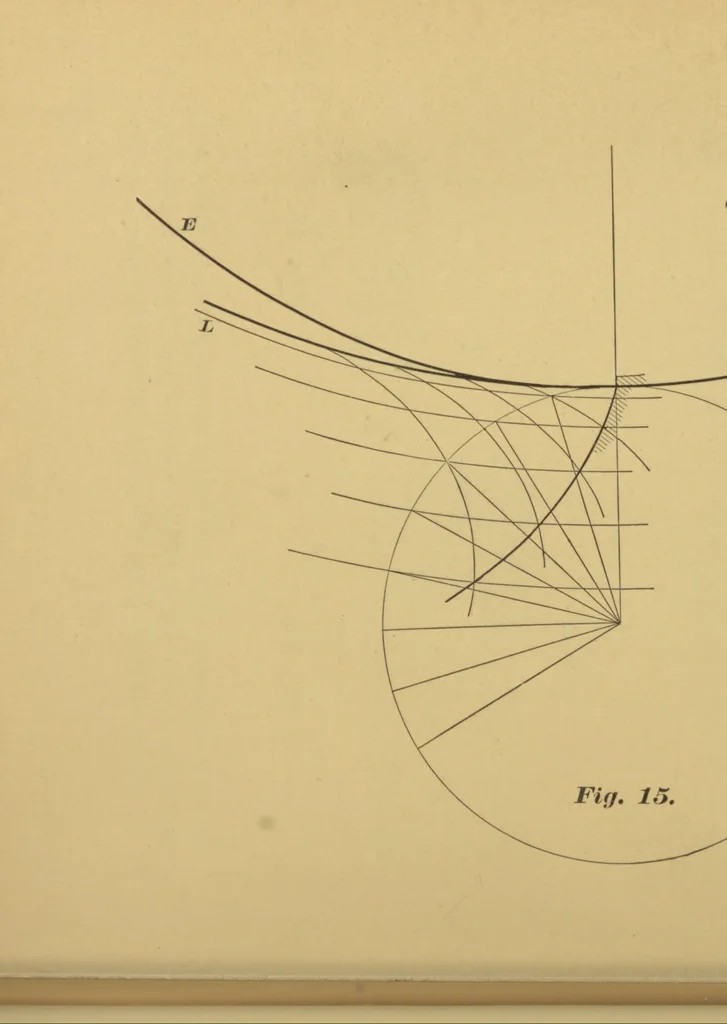

In a construction of this kind it is suggested to draw thetooth outline many times full size and reduce by photography.An equally multiplied line A B will help in reducing. 44 BROWN & SHARPE MFG. CO. … PROVIDENCE, R. I. 45 Second Method.—The difference between gear and pinionbeing very small, it is sometimes desirable to obtain a smoothaction by avoiding what is termed the fricton of approach-ing action.* This is done, the pinion driving, by giving gearonly flanks, Fig. 15, and the gear driving,…
