Freehand perspective and sketching; principles and methods of expression in the pictorial representation of common objects, interiors, buildings and landscapes (1916)
Norton, Dora Miriam · Brooklyn : The author · leaf 121

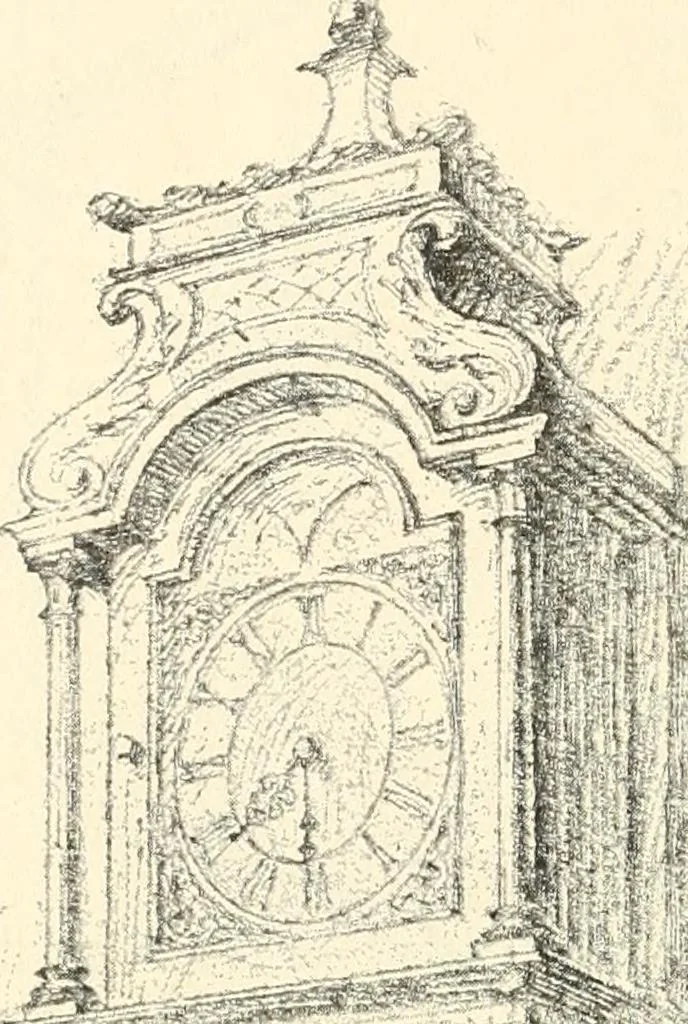

Chapter XXXITHE CLOCK A PROBLEM HIS example (Fig. 166) is given as an aid in rendering, though it may be drawn first if desired. The Model. — Any clock containing rectangular forms — - ■■■-- and the usual cir- cular face will serveas the model. Itshould be placedabove the eye. Conditions.—Un-like… … Fig. 166 102 Chapter XXXIITHE ARCH THESE arches from the cloister of St. Pauls WithoutGates, at Rome, also illustrate the symmetry ofcylinder, and can be drawn by the same method the the as
Drawing · Perspective
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
