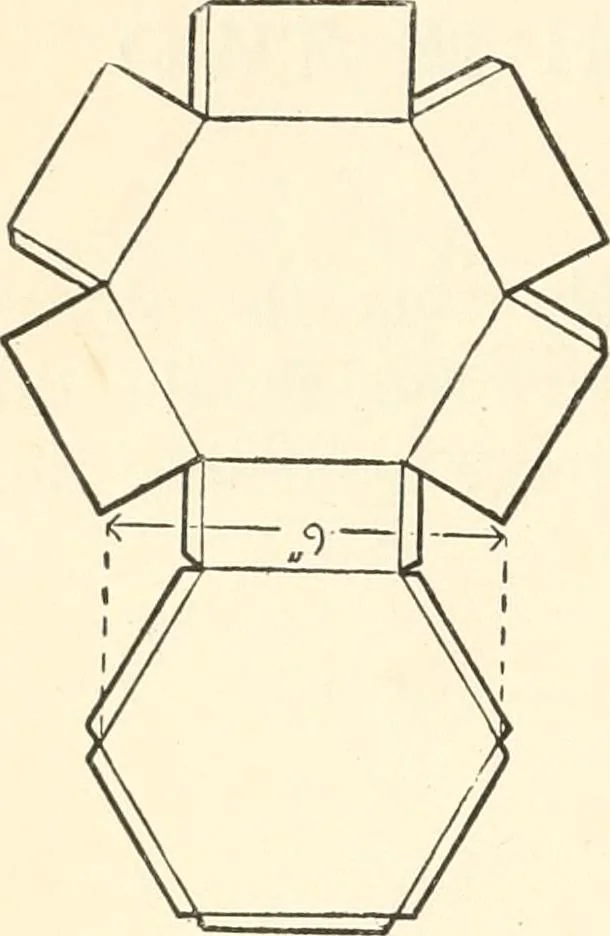

ry, as by the general directions. in Chapter XI.The Model. ^ This can be made from card-board according to the diagram (Fig. 193). Tor , \.__.^.,_.,„__^^ the first posi-tion it should be placed about three feet from ^^^ the eye and nine inches be-low it, and with two vertical \ ^ faces parallel… … ■•^ h -^ Fig. 193 a perpendicular at the point of division. Measure the distanceAB, taken on the pencil, from B against the perpendicular. Where it falls (at O) will be one cornerof an equilateral triangle (AOB) whichwill form one sixth of the desired hexa-gon. Sketch vertical lines of…
