Freehand perspective and sketching; principles and methods of expression in the pictorial representation of common objects, interiors, buildings and landscapes (1916)
Norton, Dora Miriam · Brooklyn : The author · leaf 83

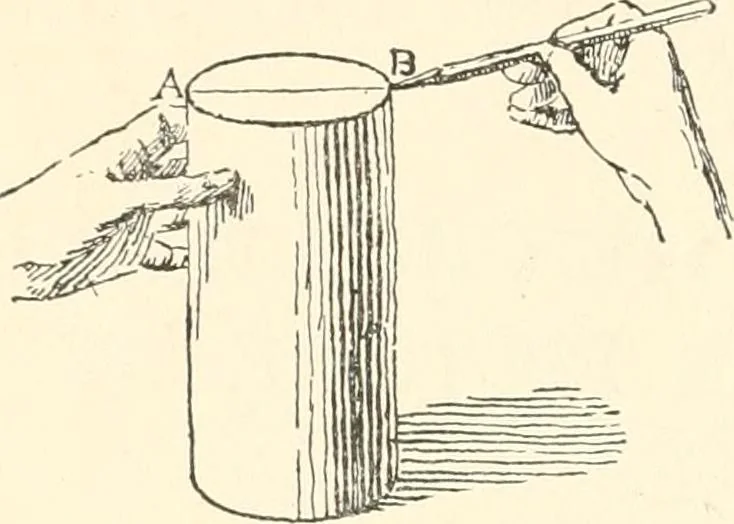

Fig. 100 be found that they are actually less than half way from the frontto the back (Fig. 102). Yet the pencil has marked what the eyemw as the greatest dimension. As shown in Fig. 103 this appar-ent greatest dimension (A B) forms the long diameter of the ellipse 63 FREEHAND PERSPECTIVE … Showing apparent middue from FffONT To BACK. OR LONG DIAMETER Fig. 101 in the perspective view. It is evident, therefore, that the eye doesnot see half way round the cylinder, and (as seen in Ch. IV) that the long diameter of the ellipse isnot an actual diameter of the circle,while that portion of…
Drawing · Perspective
