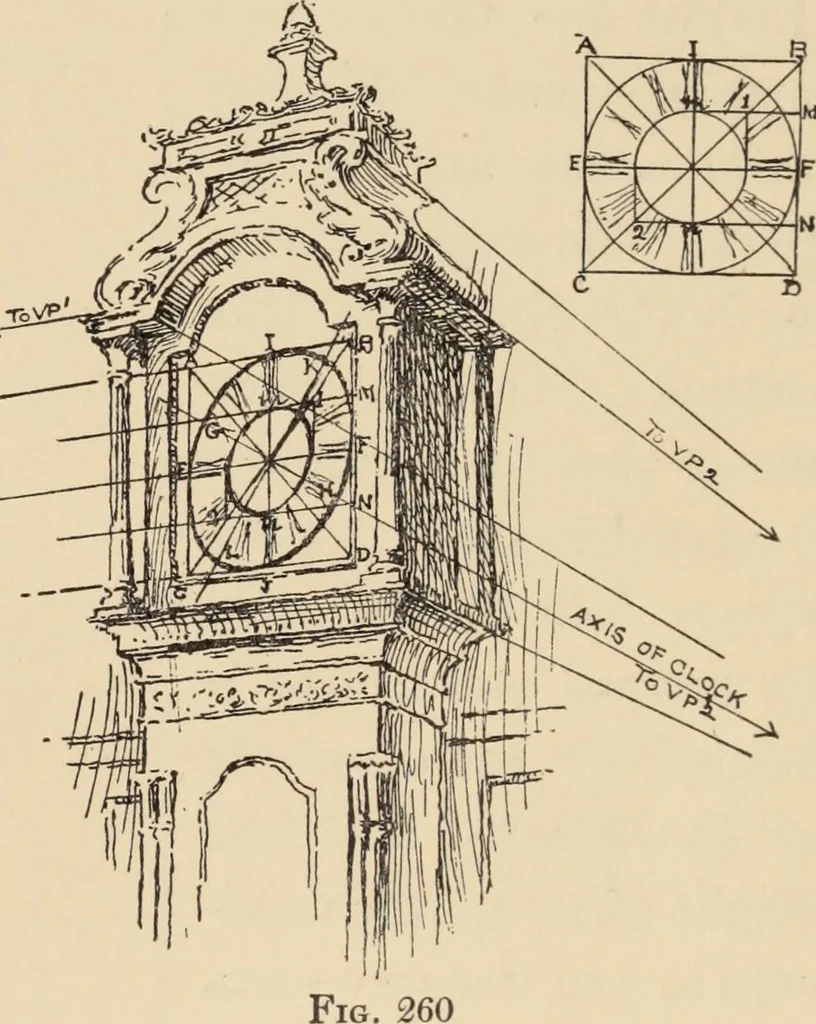

E CLOCK The dial of the clock is expressedby the methods used for the circu-lar frame in the square frame (Ch.XIX). After the rectangular por-tion of the clock has been sketched,an enclosing square for the dial (ABCD) is drawn and the clock axisvanished from the actual center ofthis square. The… … in line with the axis, though FREEHAND PERSPECTIVE of the short diameter, slightly curved lines are sketched up to the rightfrom E and in reverse direction from F, giving the front and back of theellipse. The long diameter is then sketched, of an indefinite length,midway between G and H and at…
