Freehand perspective and sketching; principles and methods of expression in the pictorial representation of common objects, interiors, buildings and landscapes (1910)

Norton, Dora Miriam · Brooklyn : D. M. Norton · leaf 38

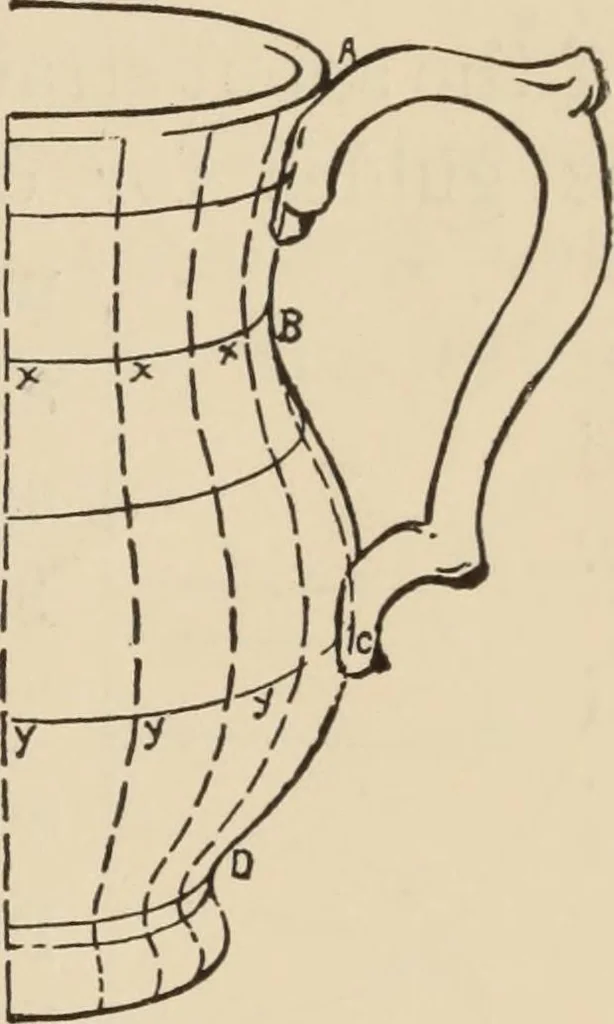

An illustration from Freehand perspective and sketching; principles and methods of expression in the pictorial representation of common objects, interiors, buildings and landscapes, 1910, leaf 38 — ow it actually differs fromthe profile curves in Fig. 33. Insketching a profile curve, therefore, allowance must bemade, as shown in Fig. 33. Note how x, x, x, thepoints of the smallest diameter, fall in an ellipse at thatheight; also the points y, y, y, of the greatest diameter.One of these…
