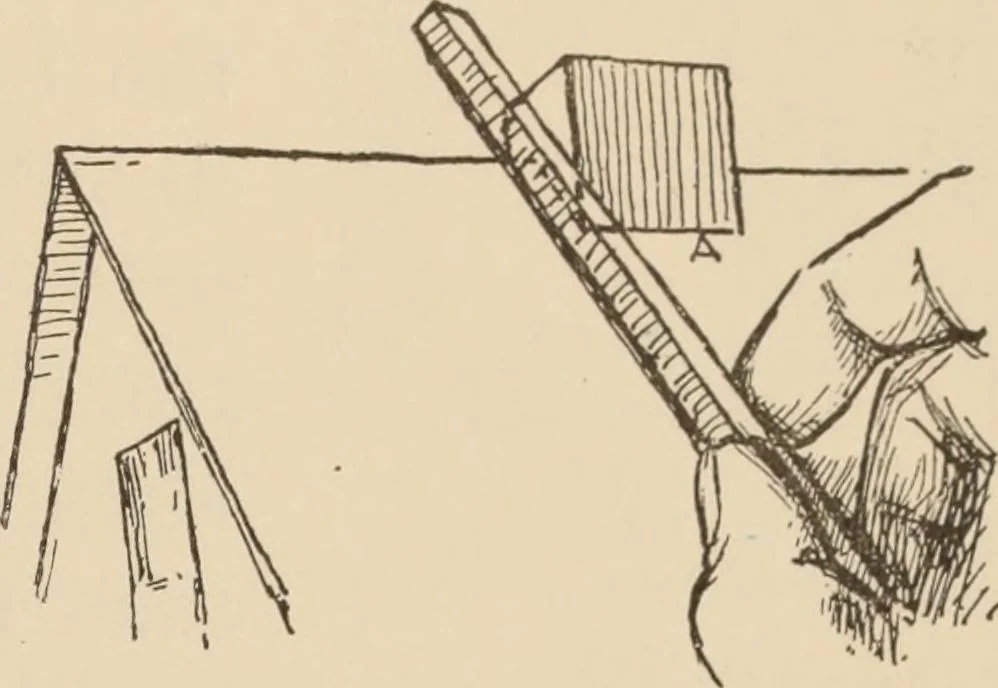

s with thegable edge. This shows the gableedge and the oblique line where thechimney passes through the roof tobe actually parallel. This obliqueline, therefore, has the same vanish-ing point as that of the gable line,which is OVPl. The top of thechimney front and the line belowit (AB, Fig. 123)… … Fig. 122
