Freehand perspective and sketching; principles and methods of expression in the pictorial representation of common objects, interiors, buildings and landscapes (1910)
Norton, Dora Miriam · Brooklyn : D. M. Norton · leaf 95

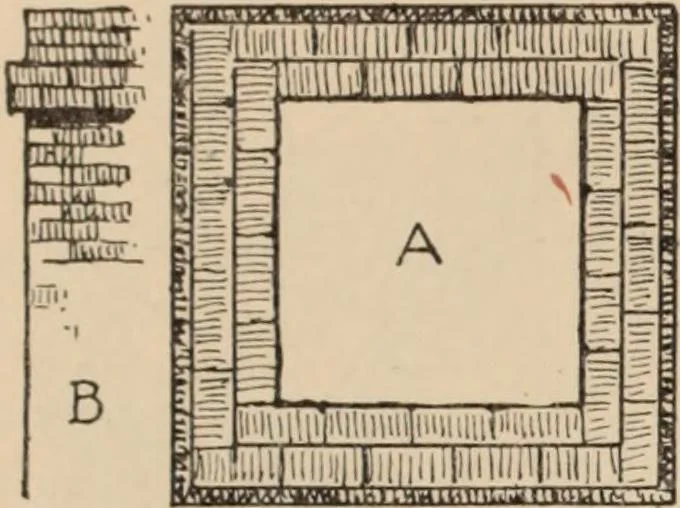

Fig. 123 VPl. A pencil held horizontally and moved slowly up in frontof the model will help to see this as will marking the chimney inthe model off into bricks (Fig. 124). Drawing the Chimney. — Continue on the roof the center lineused for the door (that is, vanish a line from its top to OVPl), 77 … A- Plan or Chimney.B--■Profile snowi/Mtr orna-mental. BAND AT TOP. Fig. 124 FREEHAND PERSPECTIVE and mark down from the ridgepole on this line half the thicknessof the chimney (judged by the eye). Draw a line through this point toward VP2, and on it set off to rightand left perspectively equal…
Drawing
