Frequency measurements in wireless telegraphy (1911)
Hyslop, William Henry · leaf 30

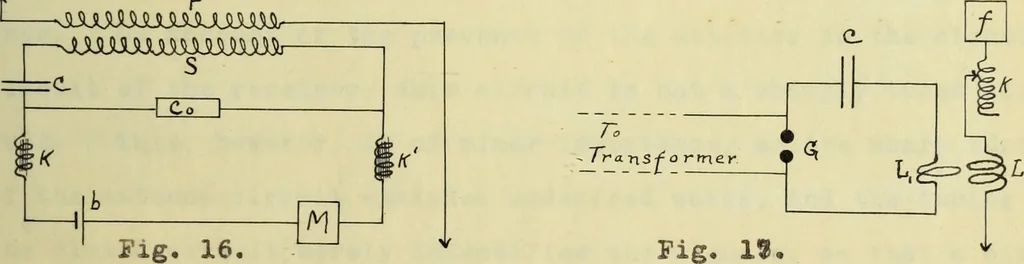

esents the primary coil in series with the an-tenna and the ground connection. Oscillations in P produce oscil-lations in the secondary coil S, which is connected in series witha capacity C and the cohered Co. When oscillations occur in thissecondary circuit the coherer is rendered conducting, and… … 2, 12 the telegraph instrument. The sending circuit is shown in figure 17. The antenna cir-cuit consists of the capacity area f in series with a variable in-ductance k, the secondary coil L£ of the sending transformer, andthe ground. The primary circuit consists of the spark gap G inseries with a…
Telegraph, Wireless · Theses
Internet Archive · University of Illinois Urbana-Champaign · Public Domain Mark 1.0. Free to use for anything.
