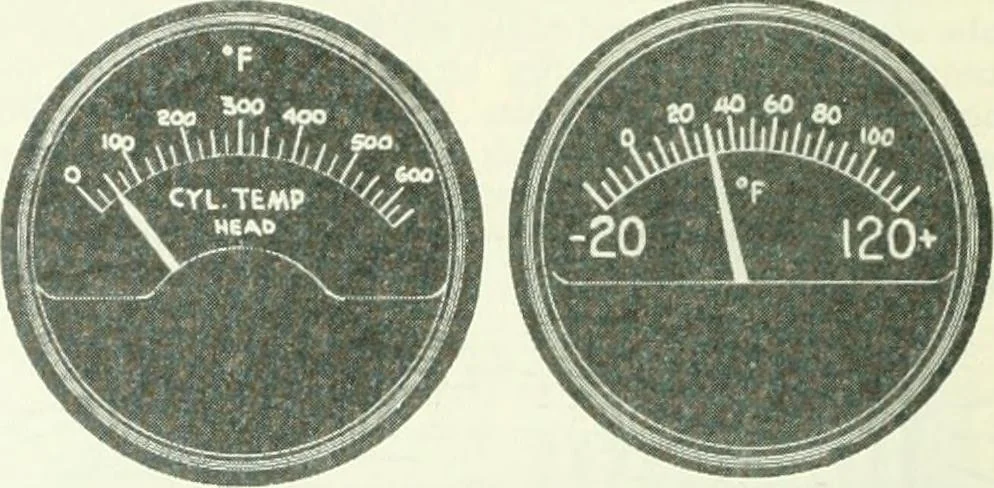

iridium for example) welded together,with the point of the weld embedded in the cylinderhead metal, or even protruding into the combustionchamber. When this junction of dissimilar metals isheated, a small galvanic current is set up in the circuitof a Milliameter. The hotter the jimction gets,… … Fig. J». Fig. J5. Thermocouple. Carburetor .4ir Temperature Gauge. engine manufacturers recommended limits should bestrictly observed. The Carburetor Air Temperature Gauge The CARBURETOR AIR TEMPERATURE GAUGE(Fig. 35) may be installed to indicate the temperatureof the mixture entering the manifold,…
