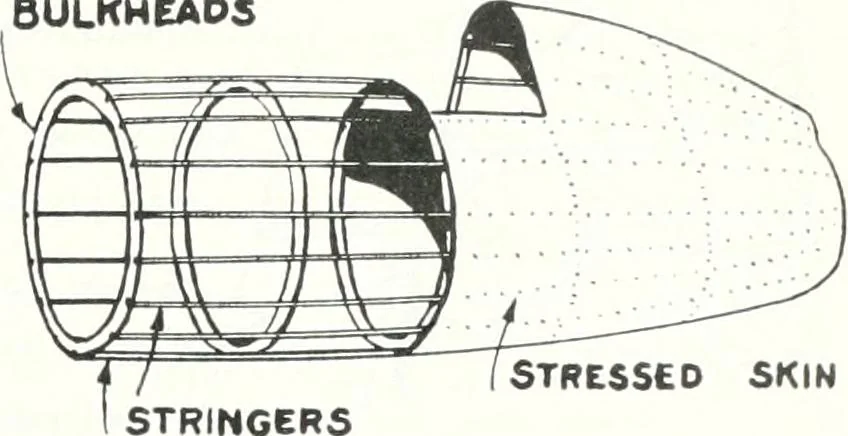

he home. The LONGERONS (three. four or more long tubes running lengthways) are theprinciple members and are braced, or held together,to form the home by VERTICAL or DIAGONAL mem-bers, the whole assembly being in the form of a TRUSS.Fig. 1 illustrates two types of steel tube braced… … STRESSED SKININGERS Fte- 2. Mnnocniqitr (Stressed Skin) Fuselage Monocoque: This type consists of a series ol roundor oval BULKHEADS held together by STRINGERS(long strips runnmg lengthwise). The Bulkheads carrythe loads, the stringers being merely superstructure.The early types of Monocoque…
