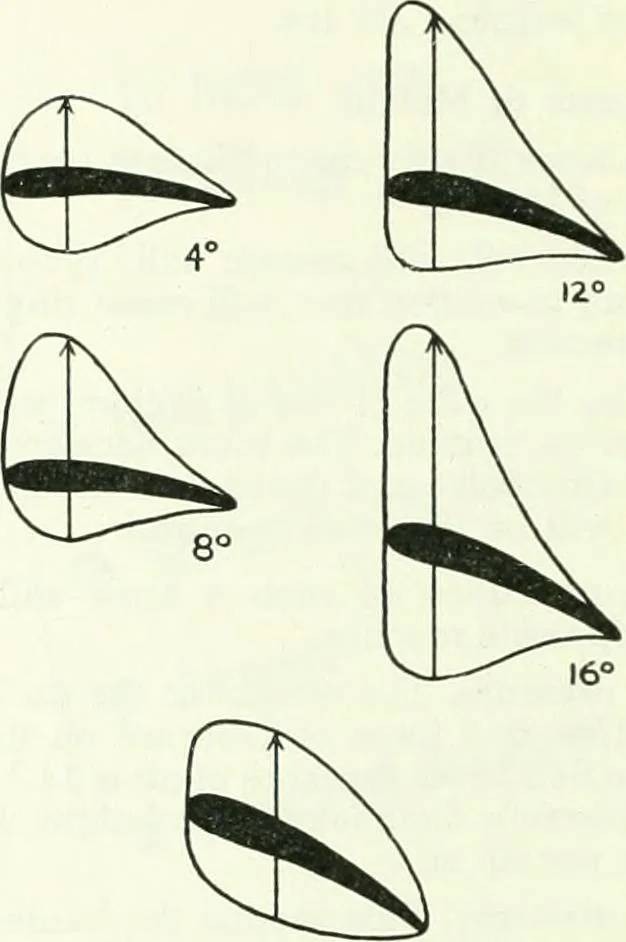

dthis angle, they decrease. (Fig 4). If we consider all the distributed pressure to beequivalent to a single force, this force will act througha straight line. The point where this line cuts the chordof an airfoil is called the CENTRE OF PRESSURE. Thus, it will be seen that as the Angle of Attack… … Ftg. ?. Pressure Distribution oner an Airfoil Centre of Pressure and Angle of Attack The angle at which the airfoil meets the relative 20°Fig. t. Change of Pressure Distribution with Angle oj Attack Lilt and Drag Curves As the amount of Lift varies with the Angle of Attack,so too does the…
