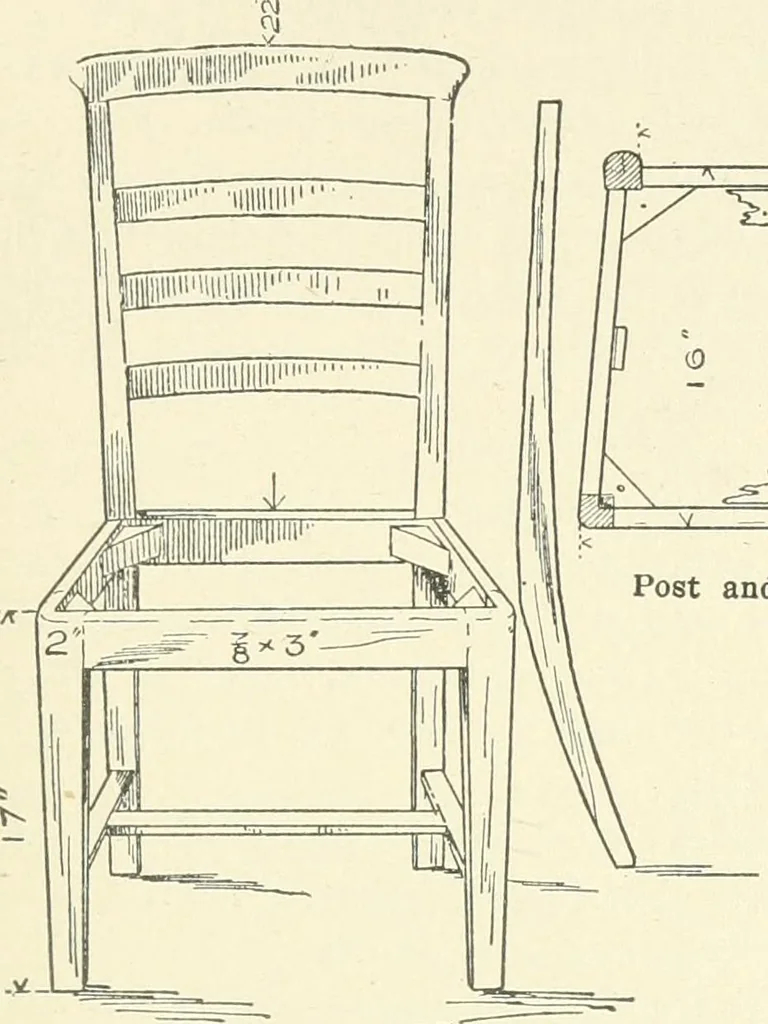

d along must be decided when the chair is set up looselyfor a trial inspection. The rounding of the back posts on theback, as shown in section on the seat plan. Fig. 175, is recom-mended as giving a smooth finished appearance; also a similarrounding to the back edges of the slats, which are J^ inch… … 13 = ^ ^.^-^^s^ 19Post and Seat Plan. Front View.Fig. 175.—Construction of Frame of a Dining Room Chair. to this consists of ^ x 2-inch material, lap jointed, glued andnailed into a frame, giving a 3-16-inch allowance all around whenset upon the corner and side block shown in the engraving. The…
