Furniture for the craftsman; a manual for the student and machanic (1914)
Otter, Paul D. (Paul Denniston), b. 1866 · New York, Davis Williams company · leaf 60

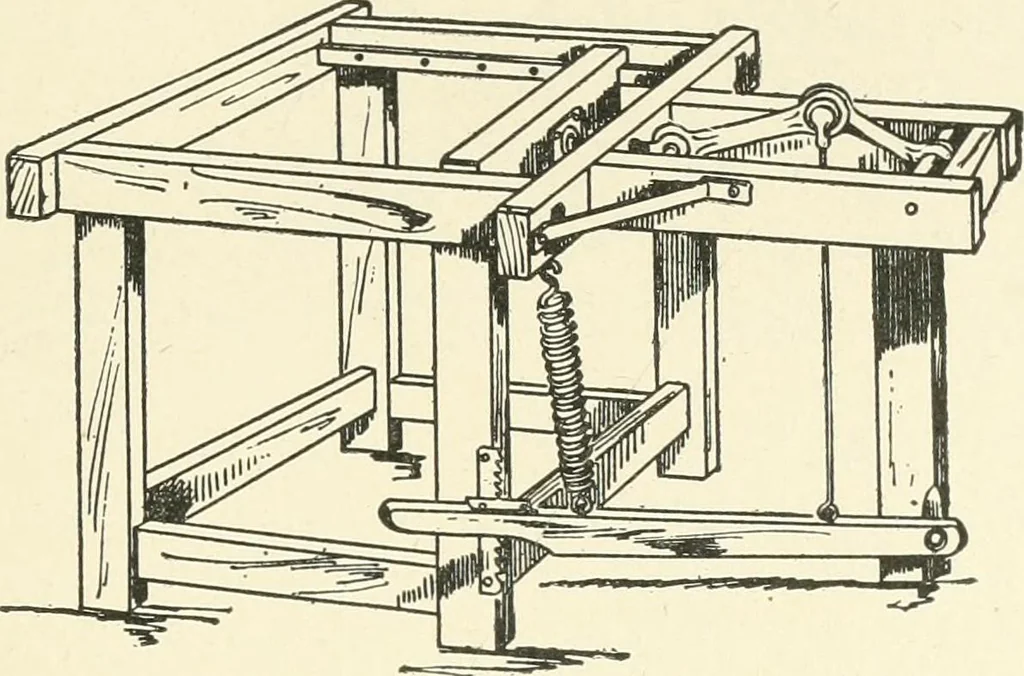

Another Form of Frame Holder. in the block A and the large bolt in the block B. This will per-mit of the press being readily removed or set up when needed.The enlarged handle is reinforced by a piece of heavy brass platesecured well up on both sides. The L-shaped iron C centersover the lever with a… … Fig. 77.—Permanent Form of Squeezing Press. valuable machine, as rails and stiles to small framework can bequickly brought to a tight, square joint. The notched metalplate attached to the post, as shown, permits of the tension beingheld until the glue is dry or the boring of holes and the placingof…
Furniture making · Furniture finishing · Cabinetwork
