Gas-engines and producer-gas plants; a practice treatise setting forth the principles of gas-engines and producer design, the selection and installation of an engine, conditions of perfect operation, producer-gas engines and their possibilities, the care of gas-engines and producer-gas plants, with a chapter on volatile hydrocarbon and oil engines (1905)
Mathot, Rodolphe Edgard, 1866- · New York N.W. Henley Pub. Co · leaf 231

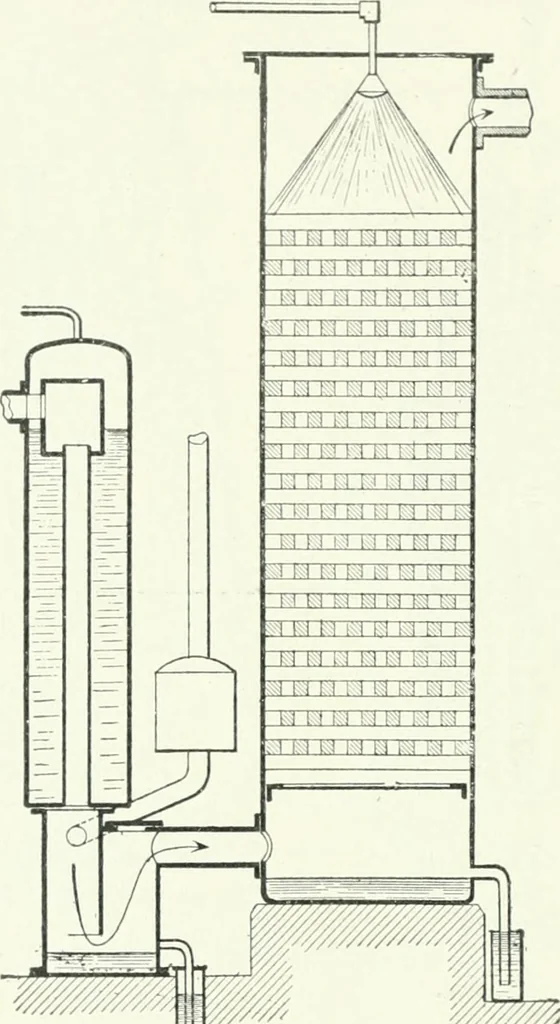

orizer. Deutzs old model (Fig. 117), or with single tube likePintschs generator (Fig. 118), is formed by three com-partments separated by two tube sheets or by plateswhich are connected bv tubes. In some cases the gases pass within the tubes, whilethe water to be vaporized surrounds them; as in the… … ^ w/m ///////y/AFig. 118.—Pintsch vaporizer and scrubber. side. In this latter case, a longitudinal baffle is em-ployed to compel the gases to heat the tubes in theirwhole length, as in the Deutz producer (Fig. 117). Ina general way it may be said that such a series of tubes VAPORIZERS 233 presents…
Gas · Internal combustion engines
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
