Gas-engines and producer-gas plants; a practice treatise setting forth the principles of gas-engines and producer design, the selection and installation of an engine, conditions of perfect operation, producer-gas engines and their possibilities, the care of gas-engines and producer-gas plants, with a chapter on volatile hydrocarbon and oil engines (1905)
Mathot, Rodolphe Edgard, 1866- · New York N.W. Henley Pub. Co · leaf 232

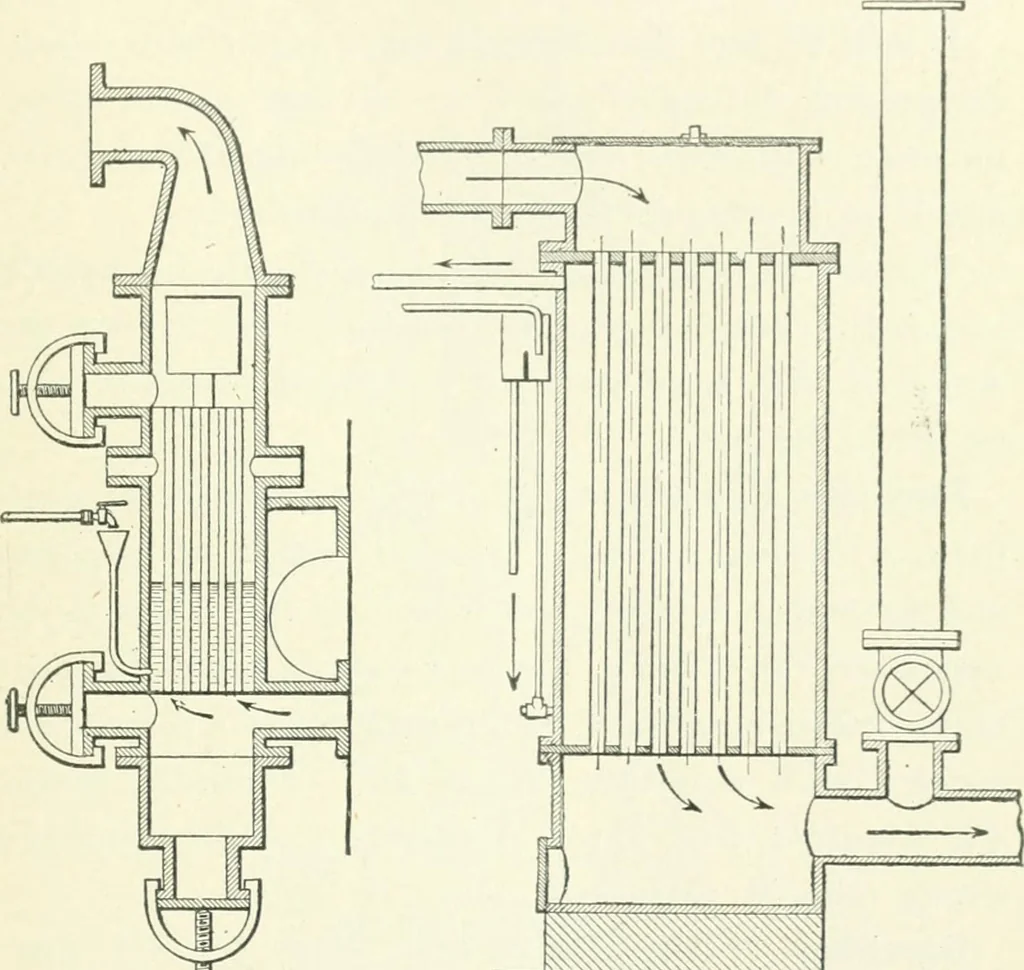

. side. In this latter case, a longitudinal baffle is em-ployed to compel the gases to heat the tubes in theirwhole length, as in the Deutz producer (Fig. 117). Ina general way it may be said that such a series of tubes VAPORIZERS 233 presents the disadvantage of becoming clogged uprapidly by the… … Fig. 119.—Benz vaporizer. Fig. 120.—Koerting vaporizer. water-tubes are preferable, as they allow the deposit orscale to be removed through the tubular heads or plates.On the other hand, such water-tubes have the draw-back that their exterior surfaces are readily coveredwith pitch and soot. The…
Gas · Internal combustion engines
