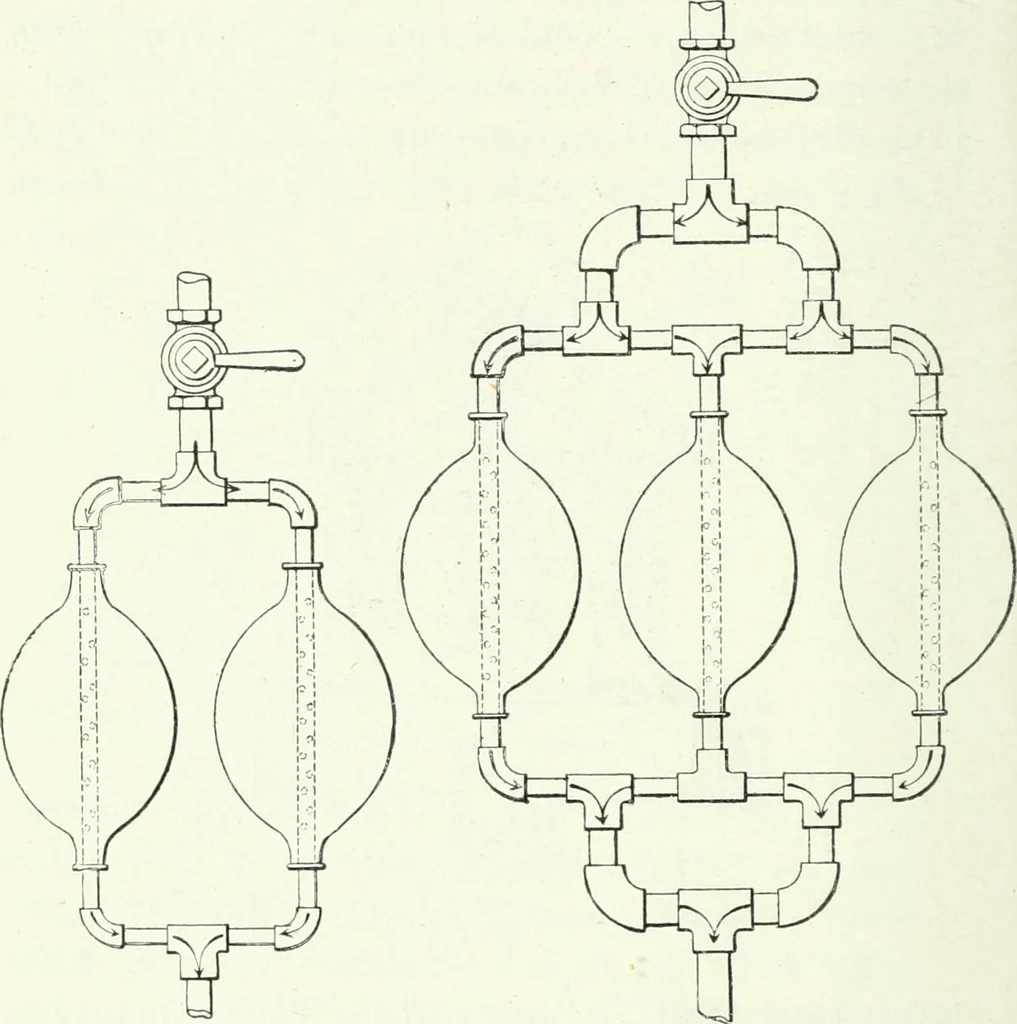

diaphragm maybe actuated by hand, if need be. Precautions.—In order not to strain the rubber ofthe bags or of the anti-pulsators, it is advisable to placea stop-cock in advance of these devices so that they cannot be filled while the motor is at rest. The capacity of the rubber bags that can be… … Figs. 48-49.—Arrangement of rubber bags. total section of the branch pipes should be at least equalto that of the main pipe. It is also advisable to extendthe tube completely through the bag as shown in Figs.48 and 49. If there be two branch pipes the minimum diameter DIAMETER OF PIPES 8i which…
