The gasoline engine on the farm; a practical, comprehensive treatise on the construction, repair, management and use of this great farm power as applied to all farm machinery and farmer's work indoors and out .. (1913)
Putnam, Xenophon Whiting, 1867- · New York, The Norman W. Henley Pub. Co. · leaf 121

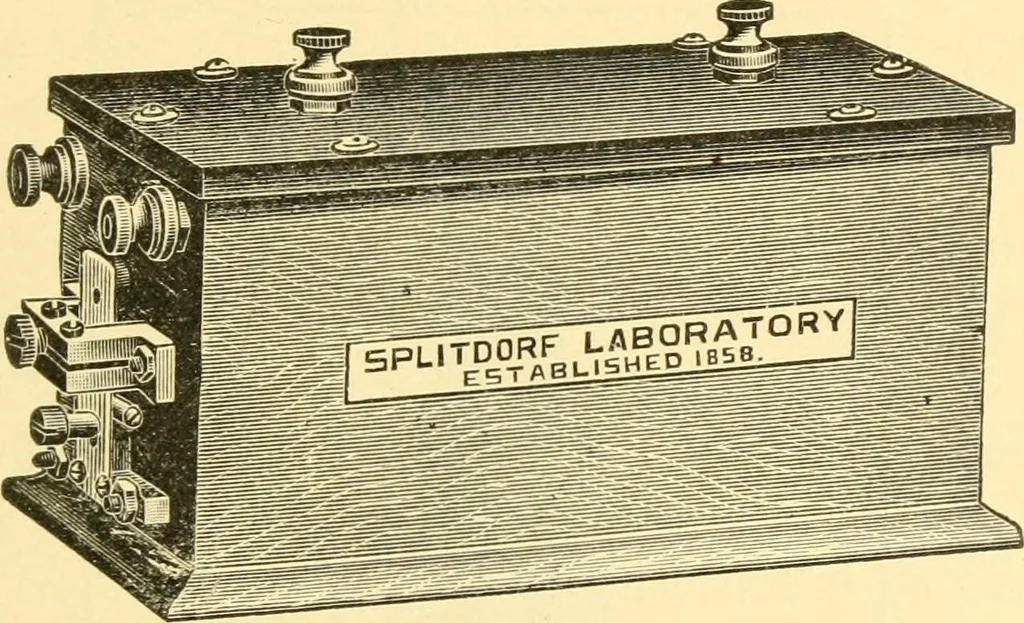

art of the circuit through the timer. From thenegative pole of the secondary circuit, the high tensionwire, the current goes to the spark phig, which isusually located in the end of the cylinder. 131. The Spark Coil.—This is really an inductionor Ruhmkorff coil placed in the path of the currentto… … Fig. 34.—Jump Spark Vibrator Coil for One Cylinder Ignition. gives a much hotter spark. This spark coil is rathera delicate affair, which should only be disturbed bythose who fully understand it. Though it containslittle that is likely to get out of order, a break in anypart of the insulation along…
