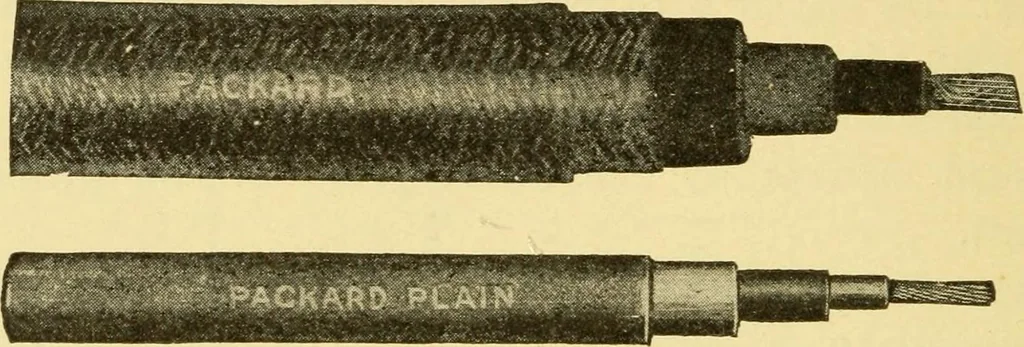

ry current by induction, and to con-vey it to the engine cylinder, where the spark gap thatfires the charge is located. 130 The Gasoline Engine on the Farm 144. The Wiring System.—The wiring systemshould be short as possible and of heavily insulatedwire or cable. The best high tension cable used… … Fig. 42.—High and Low Tension Current Conductors. layers of insulating tape. The low tension wire con-nects the carbon terminal of the battery with the posi-tive pole on the coil. It usually consists of severalfine copper wires, around which several layers of in-sulation are wound. A second wire of…
