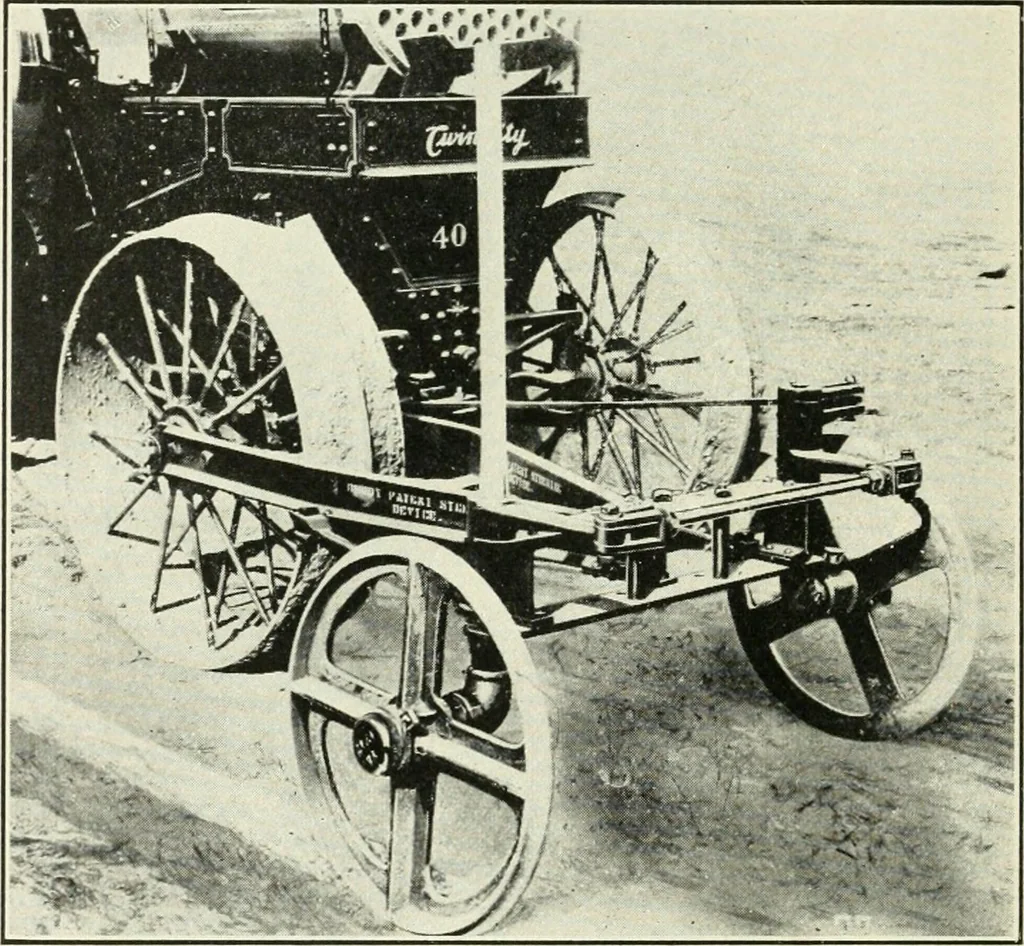

310 The Modern Gas Tractor any movement of the wheel will be transferred backto the front axle. An arrow carried at the end of astandard so that it can be conveniently glanced atby the operator from time to time serves as a directionindicator and a guide by which the course of the tractoror any… … Fig. 136a.—The Cuddy Automatic Steering Device Appliedto Aekerman Type Front Axle. readily ascertained. In the device shown at Fig. 136-Athe action is somewhat similar to that previously de-scribed, except that two wheels are used and a systemof leverage is employed to change the direction of The…
