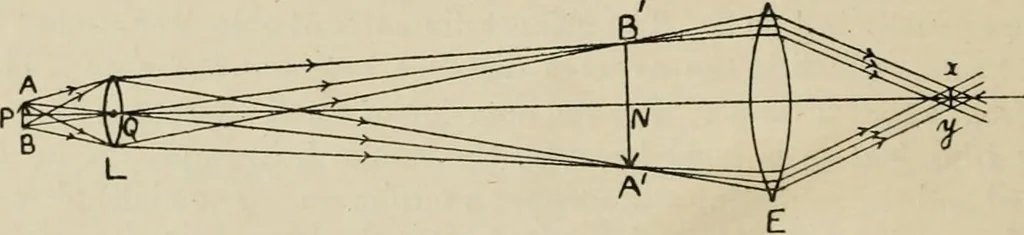

ig. 328) is used to obtain a magnified viewof a small near object. It consists of two unequal strong Cx. lenses, thefront one L, the objective, being a very strong combination, while the second,E, the eyepiece, is also strong but less so than L. The distance d betweenthem is much greater than Fx +… … Fig. 328. The object to be viewed, A B in Fig. 328, is placed just beyond F of theobjective L and a real inverted highly magnified image B A of it is formedin the focal plane of the eyepiece E when the microscope is in normal adjust-ment. An eye placed behind E then sees an enlarged virtual image…
