Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing (1921)
International Correspondence Schools · Scranton, PA : International Textbook Co. · leaf 177

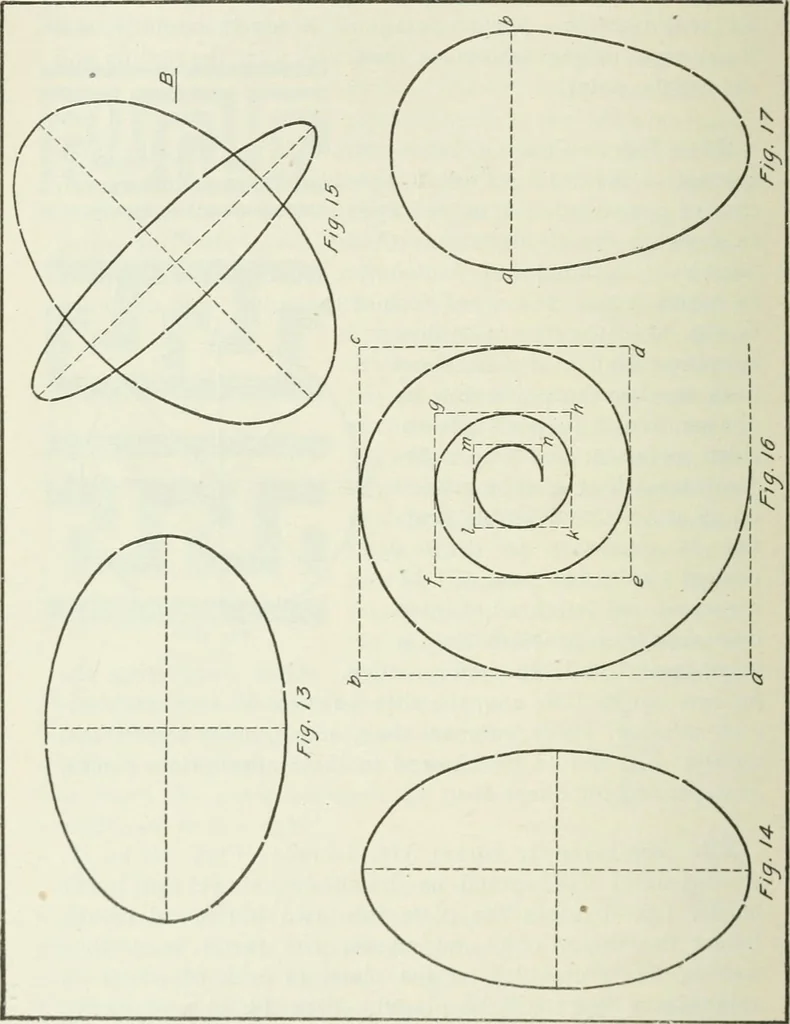

2. Exercise I, Slieet III, includes Figs. 13 to 17.A horizontal line should be drawn A% above the lowerborder line dividing the plate into two horizontal bands.Bisect the upper one, and trisect the lower one; thusmaking five rectangles on the plate, in each of which itsappropriate figure will be… … §3 FREEHAND AND ORNAMENTAL DRAWING 27 The method of drawing an ellipse geometrically wasexplained in Geometrical Drawing, so that the characteristicsof the curve should be known by this time. First draw thetwo axes, then draw short straight lines at right angles tothe ends of the axes, and roughly…
