Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing (1921)

International Correspondence Schools · Scranton, PA : International Textbook Co. · leaf 178

An illustration from Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing, 1921, leaf 178

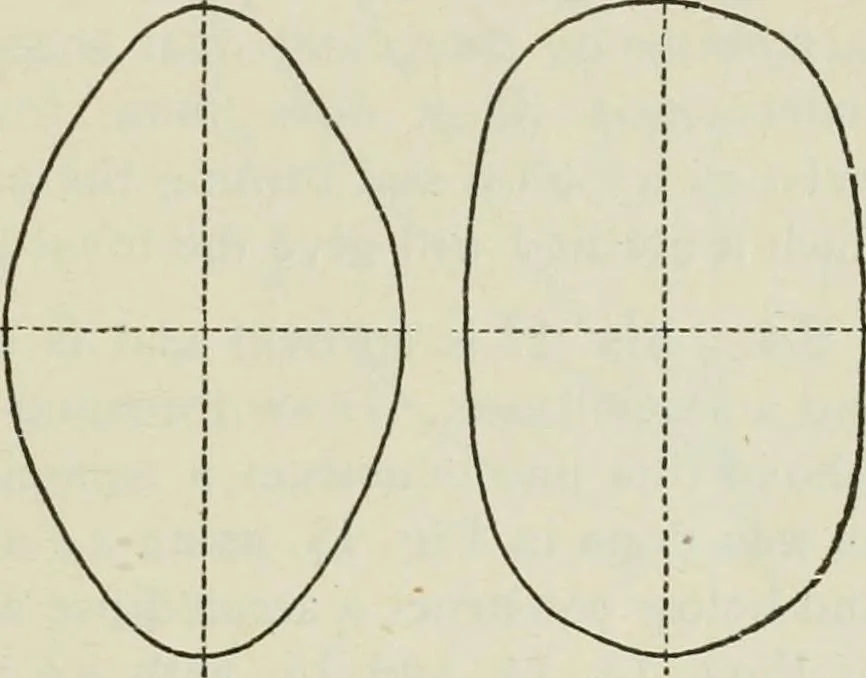

Fig. 15 Fig 16 seen that these are not ellipses, and drawing sheets must notbe returned with any such monstrosities. This is a difficultfigure to draw, but with proper care and practice it cansoon be satisfactorily rendered. The construction lines ofFigs. 11 to 15 should be arawn freehand. 23. Fig.…

Architectural drawing · Geometrical drawing · Brush drawing · Perspective · Projection · Decoration and ornament

Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
