Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing (1921)

International Correspondence Schools · Scranton, PA : International Textbook Co. · leaf 235

An illustration from Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing, 1921, leaf 235

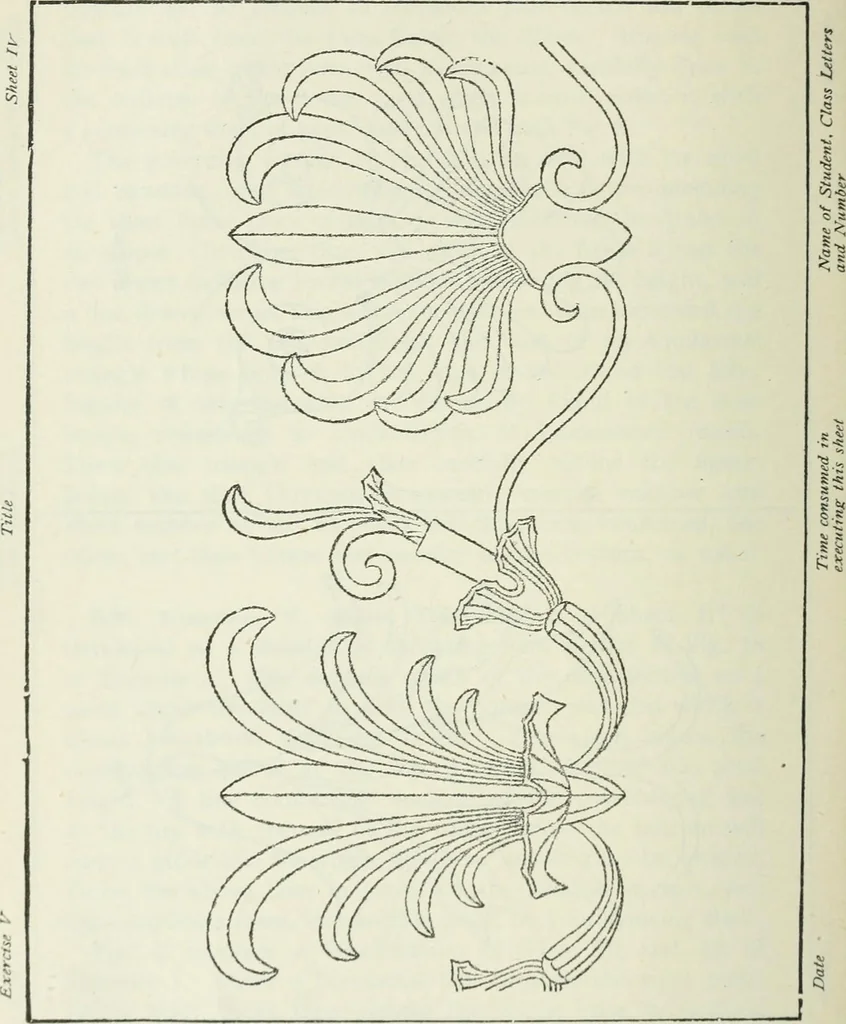

§3 FREEHAND AND ORNAMENTAL DRAWING 85 general outline of the ladiating palmette form is a semiellipsewhose semimajor axis is equal to its minor axis. The minoraxis, which is also a side of the square just drawn, passesthrough the eyes of the volute. Draw in the outlines of theleaf forms and the…

Architectural drawing · Geometrical drawing · Brush drawing · Perspective · Projection · Decoration and ornament

Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
