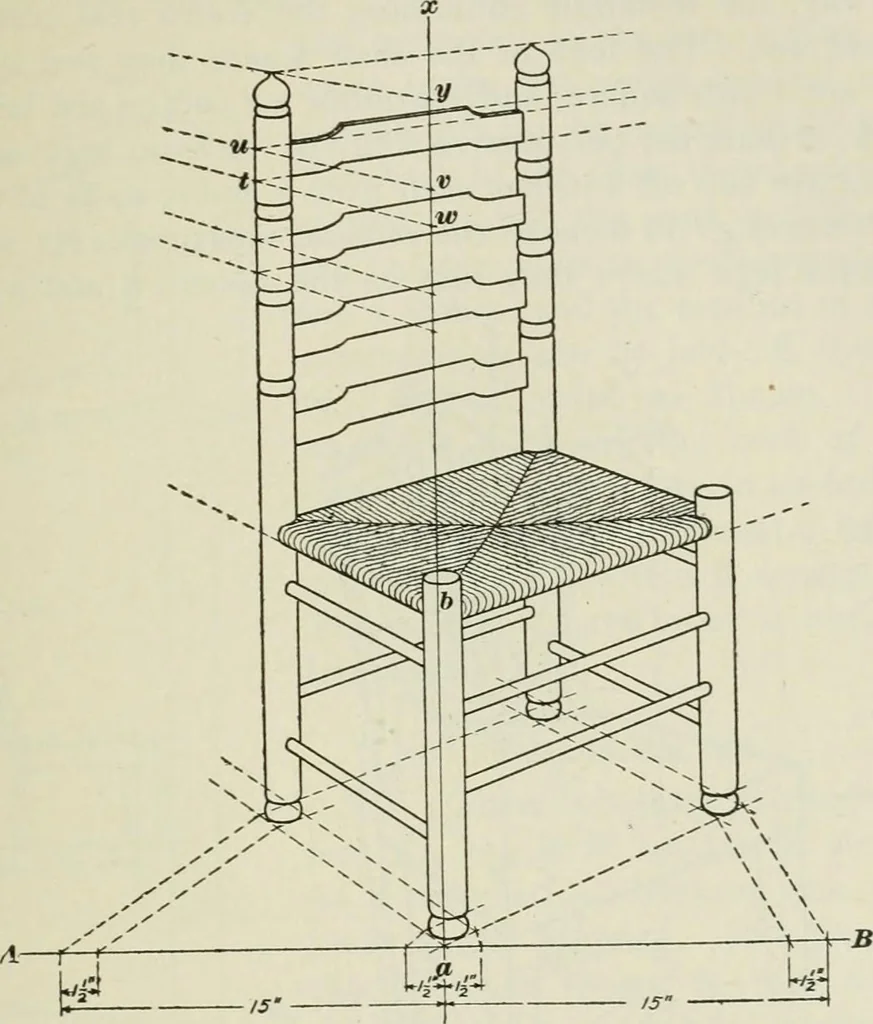

he line ax,locating the height at y. Lines drawn from a and y to F^will then determine the proportions of the back leg. Thepositions of the back slats are also laid off on the line ax,as shown at v7p, and below, and their dimensions projectedto the chair back by lines to F^, as shown at ^^ /. Lines… … Fig. 56 measurement if so desired, or the principal lines may belocated as just described and the sketch finished up freehand. PROBTjEM V 73. In Fig. 57 is shown another chair similar to that inthe preceding problem, but not so uniform in its outline.This chair is 16 inches in front and 16 inches…
