Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing (1921)
International Correspondence Schools · Scranton, PA : International Textbook Co. · leaf 379

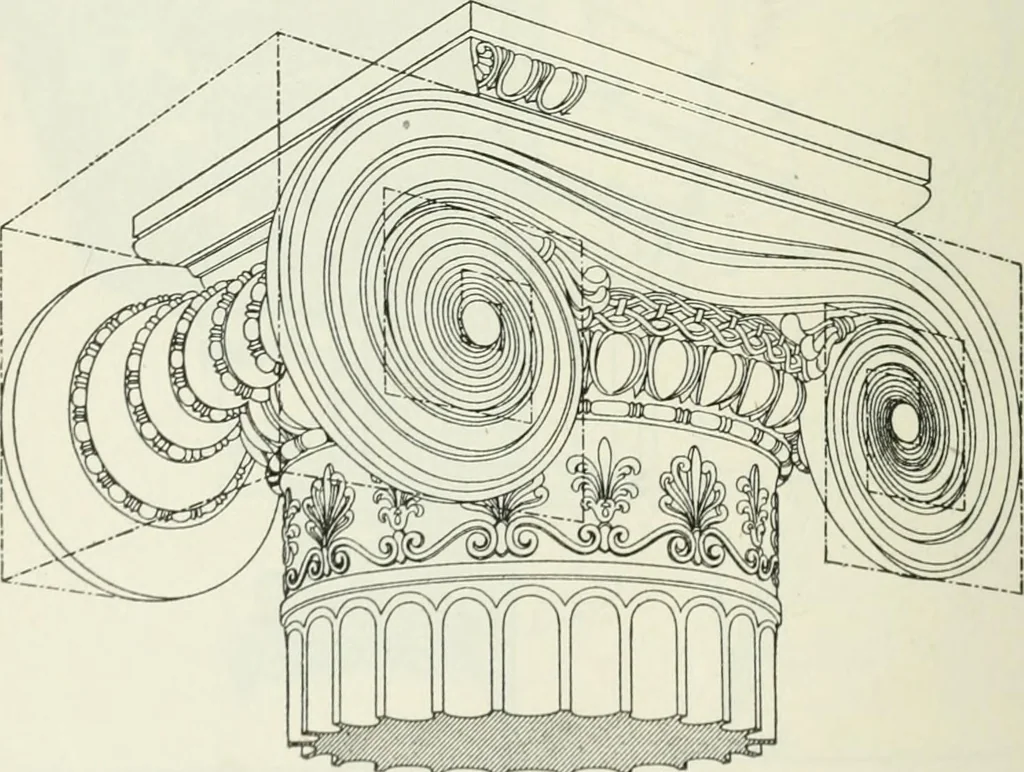

Fig. 71 The measuring line 6a c is drawn at any convenient pointabove the horizon, and the measurements of the details of … Fig. 72 the capital laid oflF from a toward b and c, the distances a band ac each being equal to the side of the abacus, and the ELEMENTARY PERSPECTIVE DRAWING 89 intermediate distances being laid ofE to determine the sizesof the smaller squares within which circular annulets aredrawn. The flutes…
