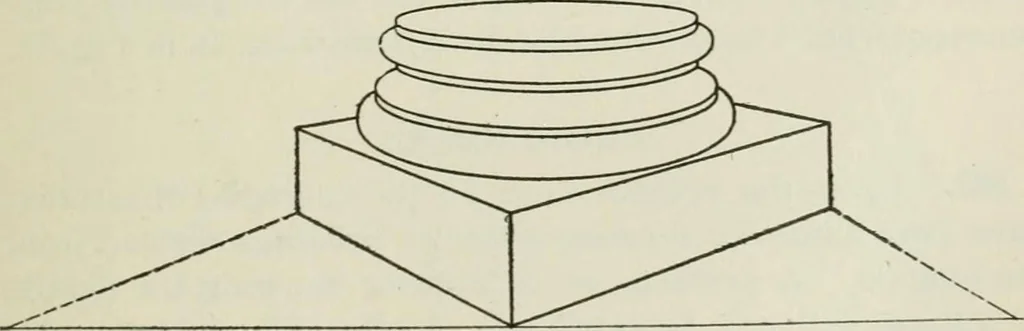

Fig. 76 owing to its being placed so far to the left, whereas if thecircular portion of it, or top member, had been drawn as inits previous illustration, Fig. 70, this dilSculty would beentirely obviated. In Fig. 77 is shown an Ionic base, the plinth of which … Fig. 77 shows that the detail is far to the left of the center of vision.The moldings, however, are drawn as though the base weredirectly in front of the eye, thus preventing all appearancesof distortion. 92 ELEMENTARY PERSPECTIVE DRAWING §5 Fragmentary pieces of columns can be drawn in…
