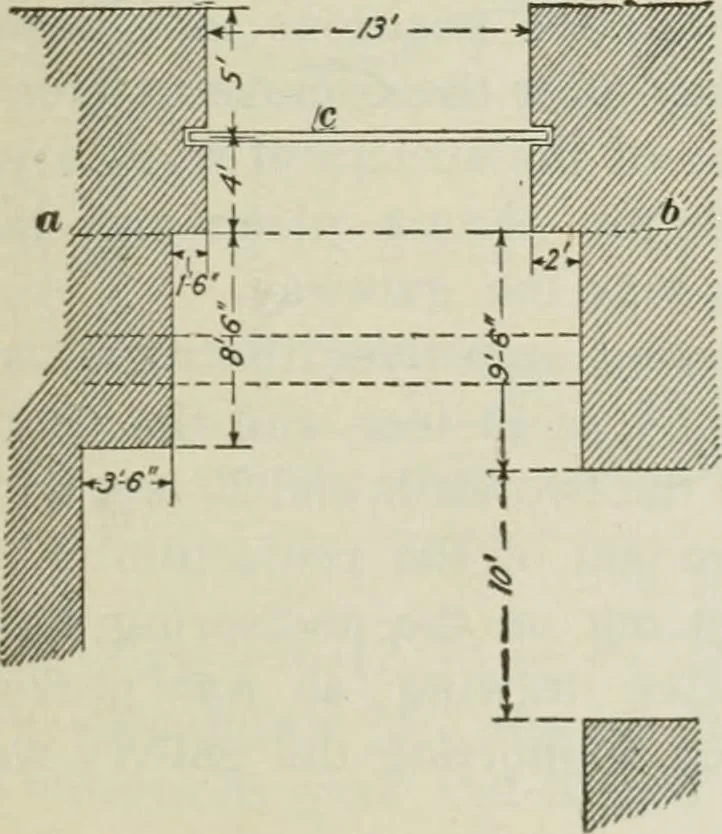

Fig. 83 outer arcs may be drawn.Now, with a point on acenter line between bsand rg, and 7 feet 6 inchesbelow the horizon, anoth-er arc should be drawnwith a radius of 12 feet6 inches showing thelower curve g-b of thearch supporting the gal-lery wall. This arch,however, projects some-what and it is…
