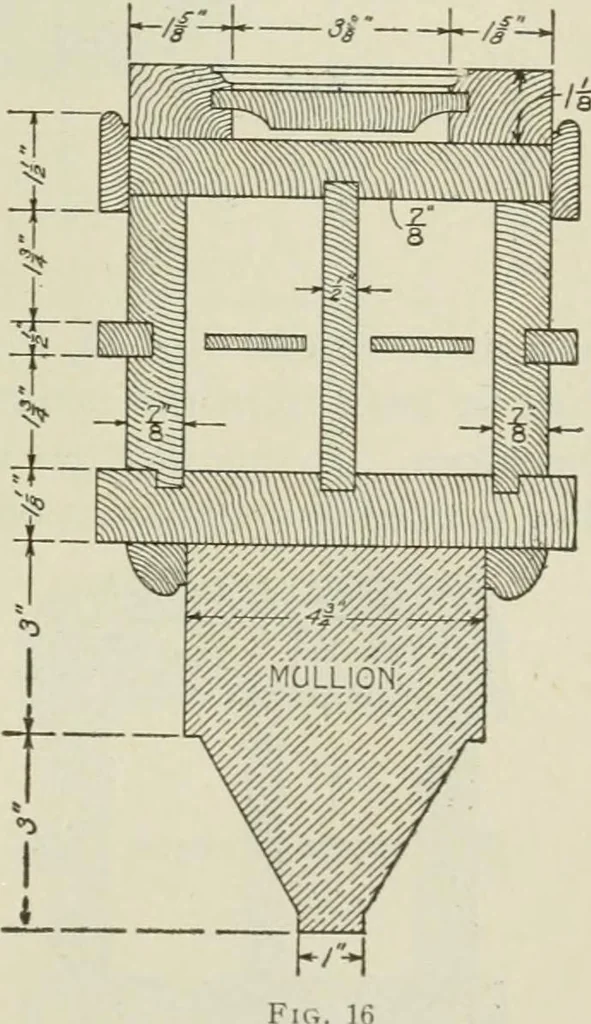

ch ofbrick. In the elevation (c) isshown the general appearanceof this window fromthe outside,being trimmed each side with quoin stones alternating inwidth. The sash is perfectly plain, but could be elaboratelymolded if desired, as could also the mullion and transom bar. In Fig. 16 is shown an… … 46 ARCHITECTURAL DRAWING desirable in large windows, as there is likely to be less draft through this point.A simple panel isframed at the bottomof the upper sashshowing the interiorwhen the window isclosed; but when thissash is dropped down,the panel, which isframed upon the mul-lion, shows…
