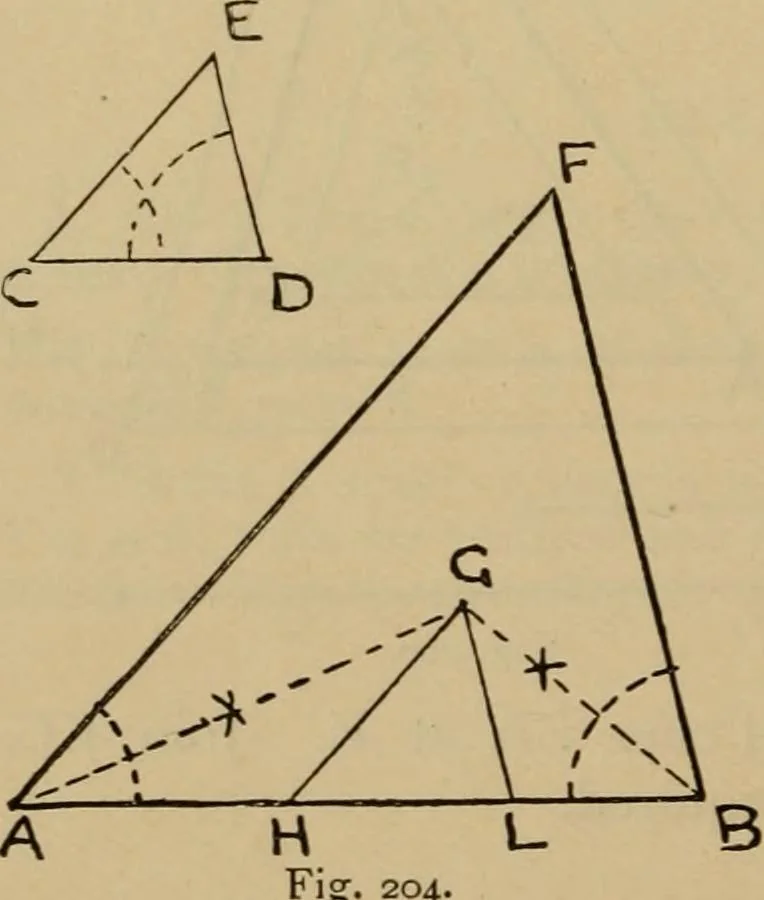

the square required. Fig. 203. To construct a triangle similar to a given triangle CDE, andhaving its perimeter equal to a given straight line AB. On the given line AB constructa triangle ABF similar to thegiven triangle CDE, by makingthe angles at A and B equal tothe angles at C and D… … CONSTRUCTIOX OF SIMILAR FIGURES. 103 Principles of Similitude. Draw a rectangle ABDC, and join each angle to anyE. Bisect EB in G, EA in F, ED in K, and EC in H.FG, GK, KH, andHF, then FGKH pointJoin
