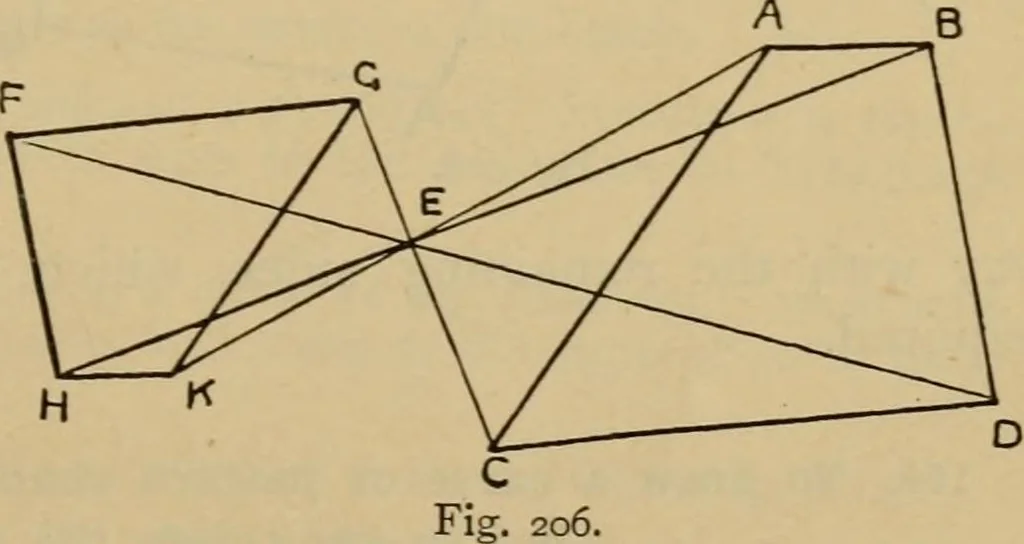

following problem shows the principle of inverse similitude. 151. To draw a trapezium similar to a given trapezium ABDC,with sides two-thirds the length of those of the giventrapezium, In INVERSE SIMILITUDE.Take any point E ina convenient position.Produce a line from Athrough E to K, mak-ing EK… … 104 GEOMETRICAL DRAWING AND DESIGN. 152. To draw an irregular polygon similar to a given polygon,but with sides two-thirds the length of those of the givenpolygon ABCDEFG.It is not necessary that the centre of simihtude should be taken outside the figure; if moreconvenient, we can use one ofthe…
