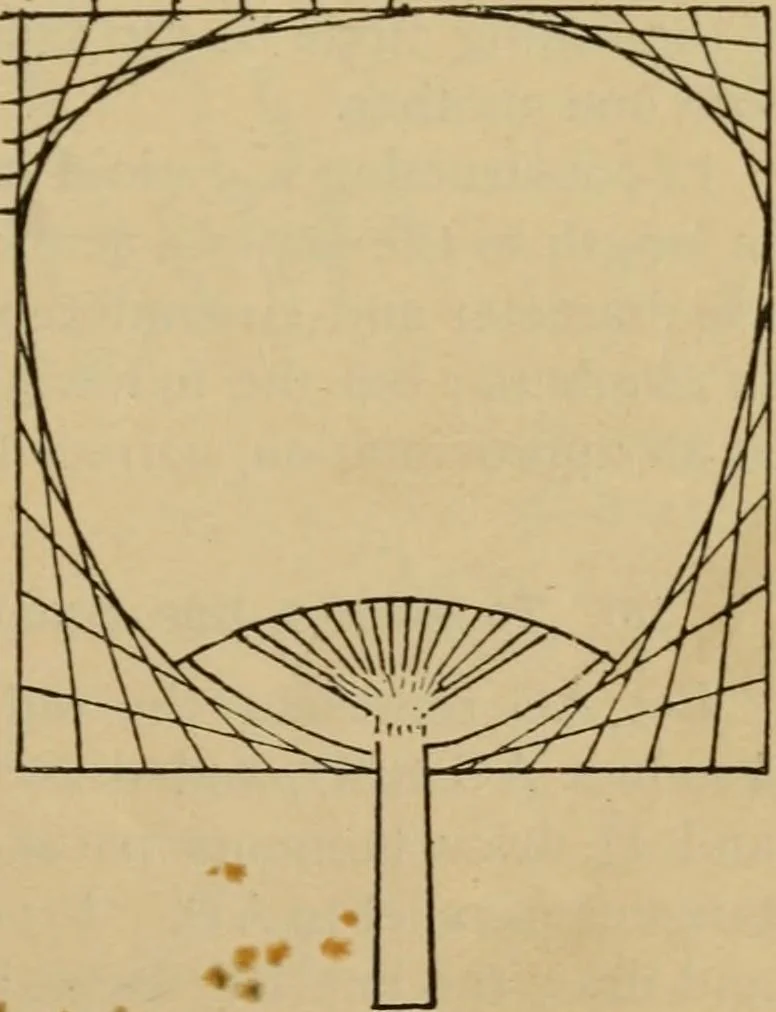

courses; theyare used by engineers where A ^ great strength is required, suchas the construction of bridges ;and they form the contour ofmouldings, etc. Those subtle wcurves that we admire in theoutline of Japanesehandscreensand vases are often parabolas. Fig. 231 is an illustrationshowing how… … Fig. 231, ceed in the same manner with the other curve** ii6 GEOMETRICAL DRAWING AND DESIGN. Cycloidal Curves. If a circle is rolled along a line in the same plane, a point inthe circle will describe a curve of a class called cycloidal. The line along which the circle rolls is called a director,…
