Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 131

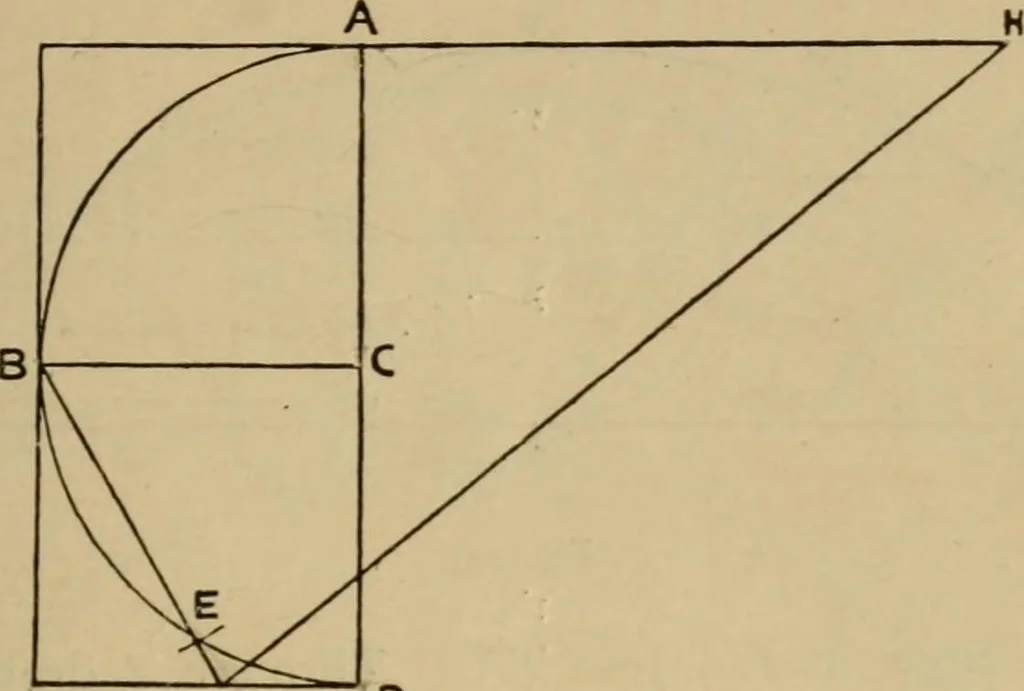

Let AC represent the radius. Draw the semicircle ABD.Produce AC to D, and draw BC perpendicular to it. From Aand D draw tangents parallel to BC, and through B drav/ atangent parallel to AD. From B set off ;S£>»e(ifiial to the jadius,and draw the line BF through E« Pj-oduce the tangent throughA… … F D Fig. 232. We are also enabled to find the length of an arc by thismeans ; e.g: the arc to the chord formed by one side of a pentagon, irfH IS-eq3.l.tn j^he circumference, thenarc required. FH -theleno-fh-(;,;\,,e 168. To draw a cycloid. Let AB be the director, and / the generator or point in…
Geometrical drawing · Design · Drawing
