Spanton, J. Humphrey (John Humphrey) · London, Macmillan and Co., Limited; New York, The Macmillan Company · leaf 146

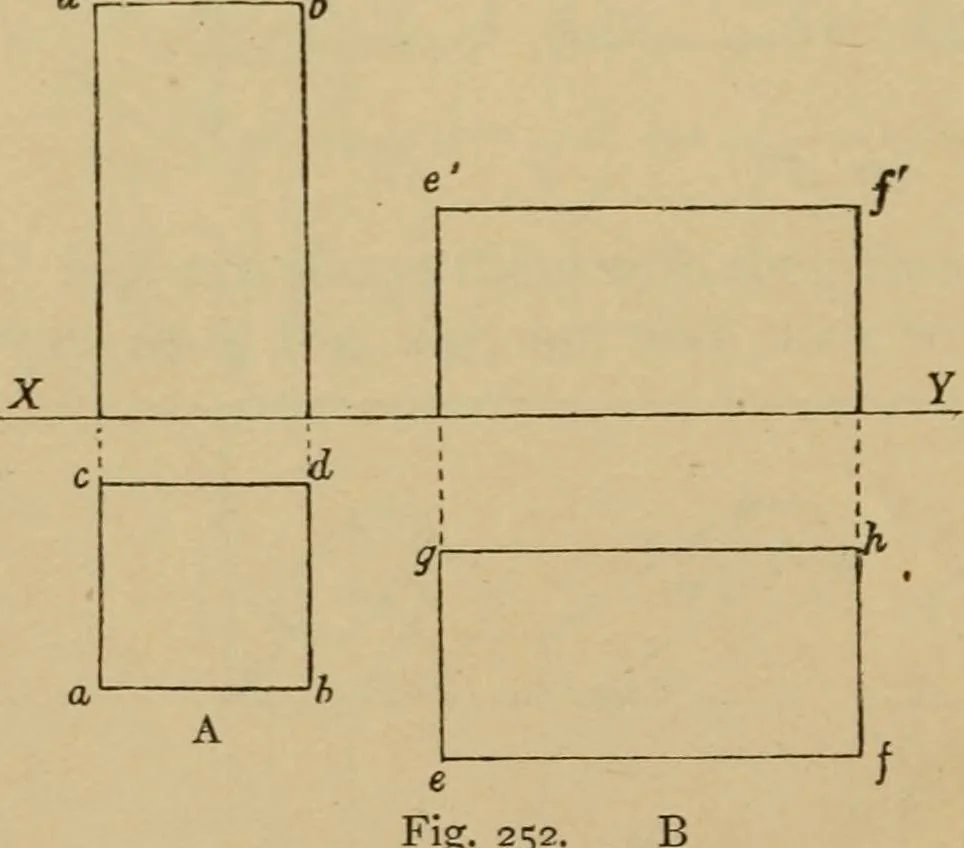

lar lines above XY, immediately over the points a and 6,^l> 5 in height, which give the points a and b. Joinab. This is the elevationof the solid. 176. To project the samesolid with one of itslonger faces resting onthe H.P., parallel tothe V.P., and l| fromit, to the same scale.Fig. 252 B. Draw… … Fig. 252. SIMPLE SOLIDS. ^33 The student should now project the four sohds illustratedin Fig. 247 in the positions there shown, but to the followingdimensions and scale : A to have a base 4 x 4, to be 4 high and 2h from v. p.B „ „ 8x4 „ 2 „ 2^ „ v.P.C „ „ 4X4 „ 8 „ 2i „ v.P. D 6X4 „ 4Scale J full…
Geometrical drawing · Design · Drawing
